AHE Series · Model 04

MIA-AHE Large AHU Unit

米亚大型落地热交换新风机组 — Large-scale floor-standing air handling unit with heat recovery for commercial buildings, hospitals, schools, and industrial facilities. Anti-flaming double-layer PU insulated panels, modular design.

Key Features

Technical Highlights

The MIA-AHE Large AHU is built for continuous high-volume operation in demanding commercial and industrial environments.

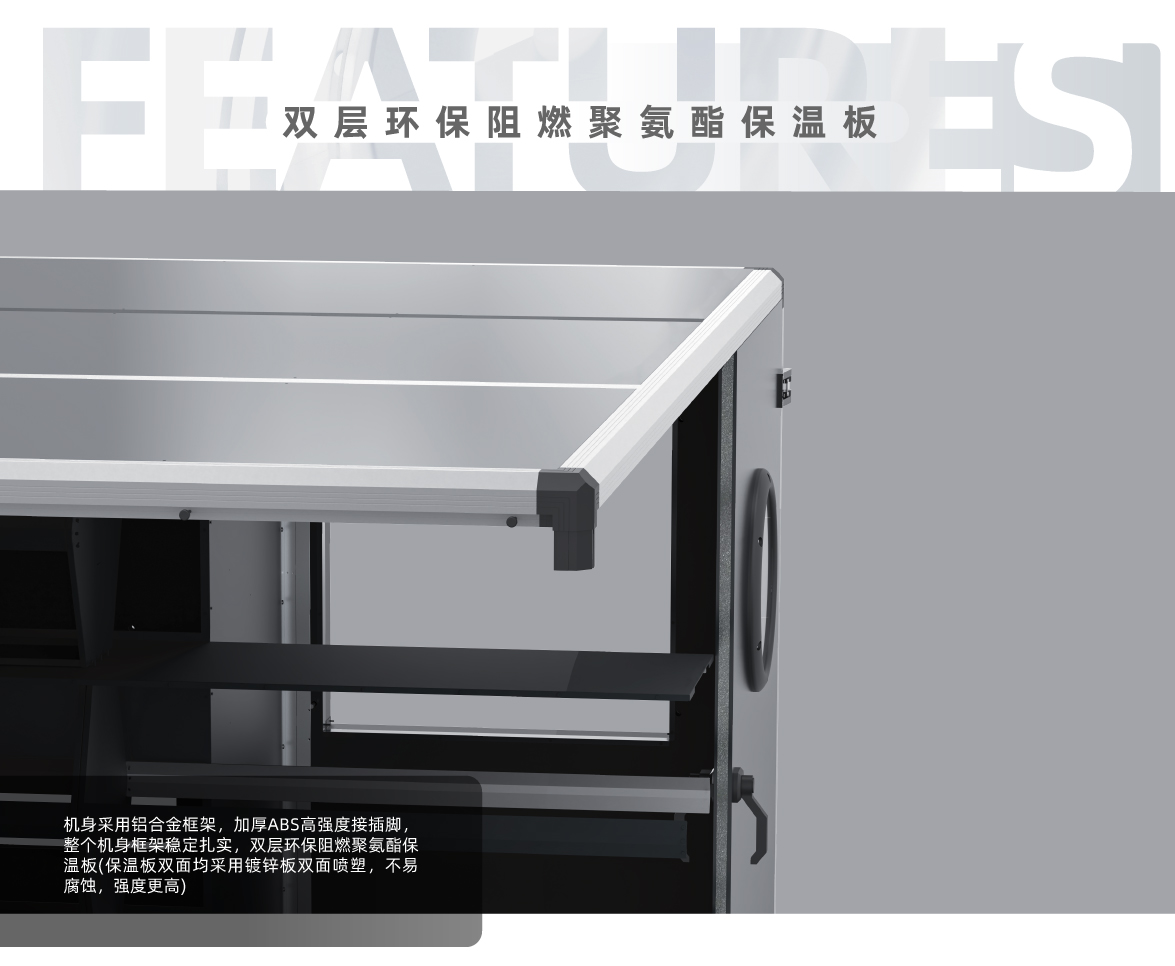

Double-Layer Anti-Flaming PU Insulation Panels

Aluminium alloy frame with thick ABS high-strength connecting feet. Double-layer anti-flaming polyurethane insulation panels — galvanised steel + double-sided plastic coating. Corrosion-resistant and structurally robust.

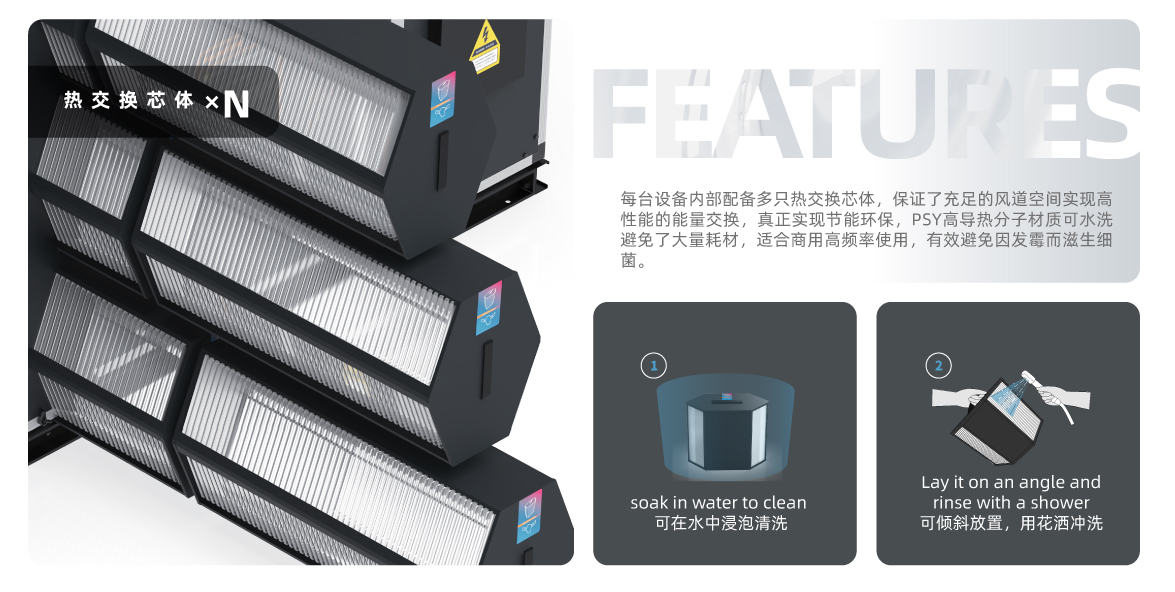

Multiple Heat Exchanger Cores

Commercial-scale units feature multiple PSY polymer heat exchanger cores — scaled to the airflow volume. Each core is independently washable and replaceable for minimal maintenance downtime.

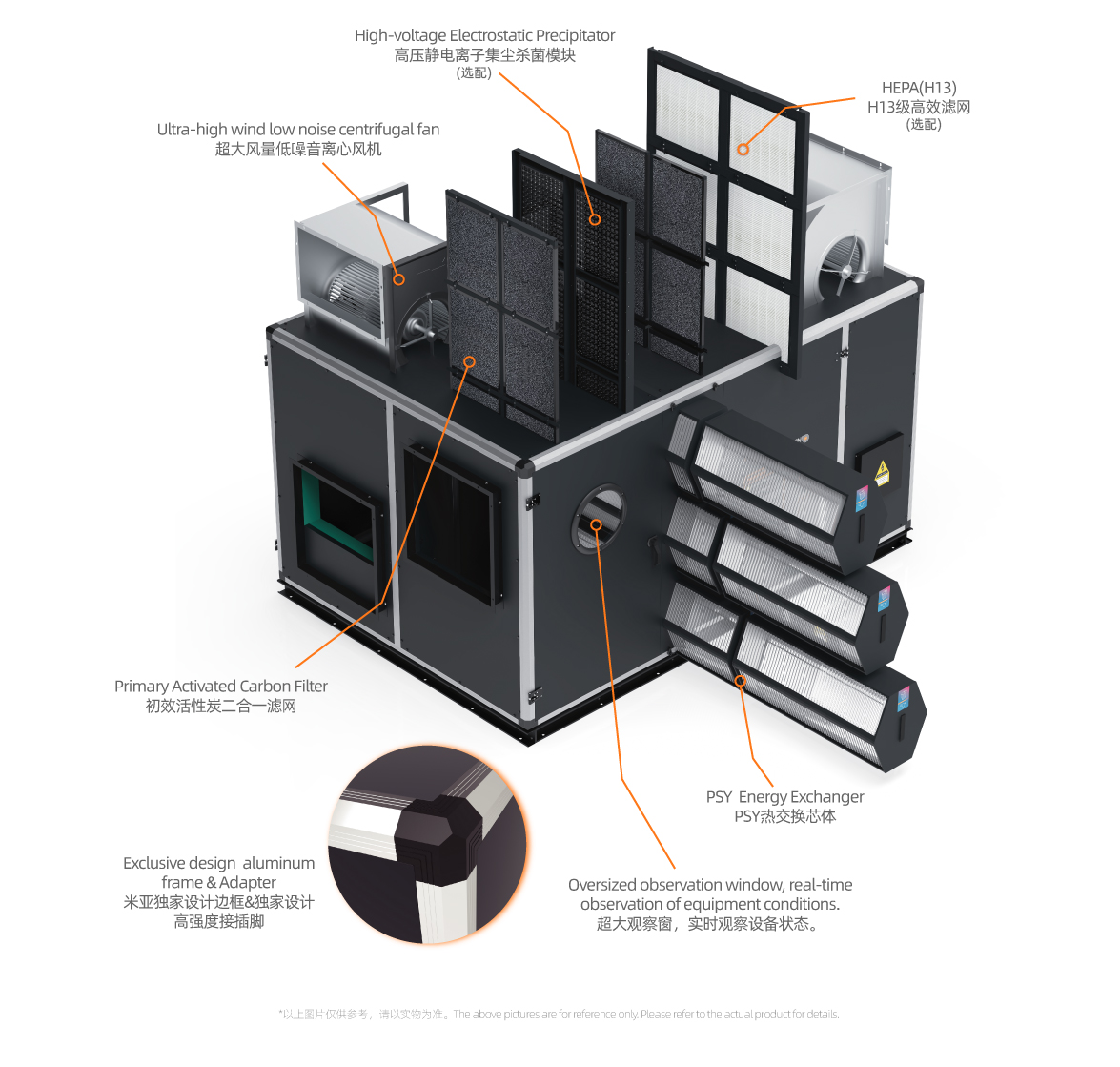

Modular, Serviceable Design

High-pressure centrifugal fans, ESP electrostatic precipitator, H13/H14 HEPA filtration, primary activated carbon filter — all accessible for on-site service. Built for 24/7 commercial operation.

Photo Gallery

Product Showcase

Models

Choose Your Model

Specifications

Technical Parameters

380V large-volume commercial heat recovery AHU series. Custom configurations available for higher volumes.

Model	Voltage	Flow Rate	Power	Efficiency	Noise	Application
MIA-AHE200GL	380V	2000 m³/h	550W	80–88%	46 dB(A)	Office / Hotel Floor
MIA-AHE300GL	380V	3000 m³/h	750W	80–88%	48 dB(A)	Large Office / Mall
MIA-AHE500GL	380V	5000 m³/h	1500W	78–85%	52 dB(A)	Factory / Hospital Wing
MIA-AHE1000GL	380V	10000 m³/h	3000W	78–85%	55 dB(A)	Large Industrial / Hospital
MIA-AHE1500GL	380V	15000 m³/h	4500W	75–82%	58 dB(A)	Industrial / Data Center
MIA-AHE3000GL	380V	30000 m³/h	9000W	75–82%	62 dB(A)	Large Industrial Complex

* Custom flow rates and filter configurations available. Contact our commercial team for project-specific specifications.
