AHE Series · Model 01

MIA-AHE Residential Console

米亚家用直流无刷全热交换器 — High-pressure brushless DC energy recovery ventilator for residential central ventilation. Ultra-slim 19cm body, dual heat exchanger core, and optional H13 HEPA or ESP filtration.

Key Features

Engineering in Every Detail

Every component of the MIA-AHE Residential Console is engineered for maximum efficiency, minimum noise, and long-term reliability.

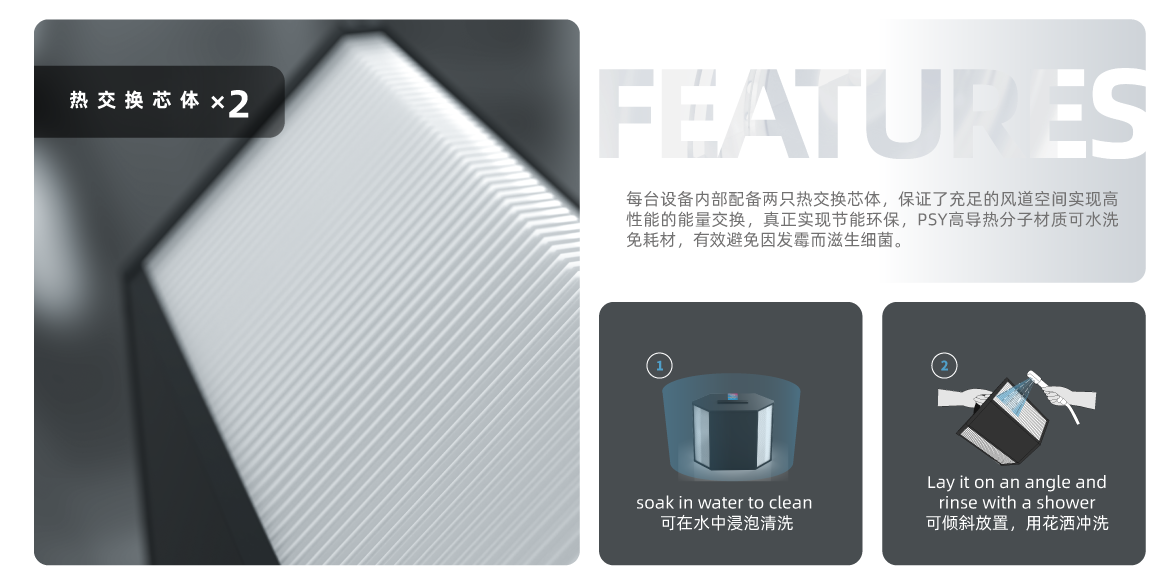

Dual Heat Exchanger Core ×2

Each unit ships with two PSY polymer heat exchange cores — washable, reusable, and rated for 80–92% thermal efficiency. Soak in water or rinse under shower to clean.

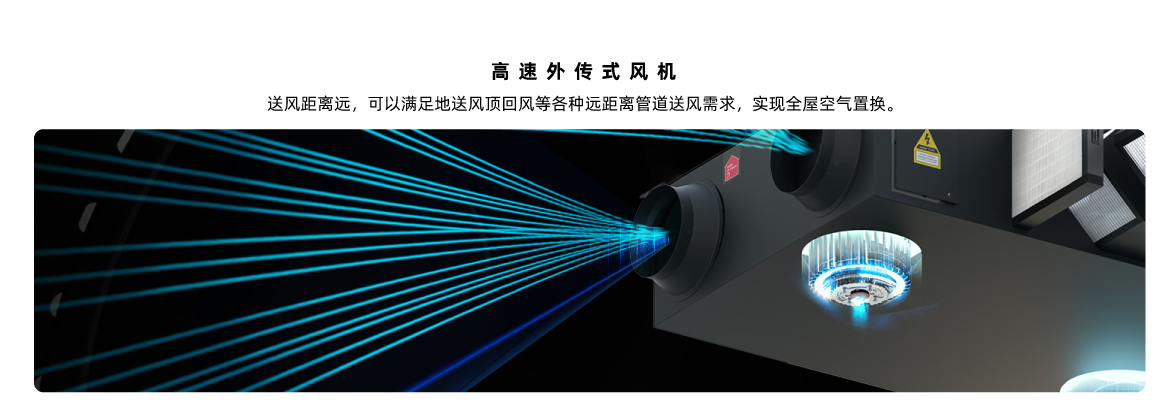

High-Speed External Centrifugal Fan

Long-distance air delivery — suitable for ceiling return, duct supply, and multi-room distribution. Brushless DC motor delivers full air exchange at the lowest operating noise.

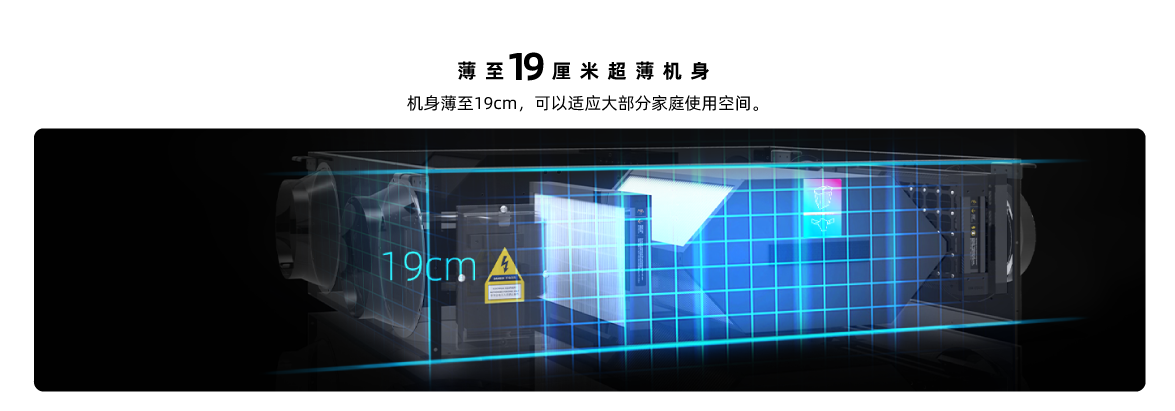

19cm Ultra-Slim Body

Only 19cm tall — fits between ceiling joists in most residential spaces without requiring a suspended ceiling or major structural work.

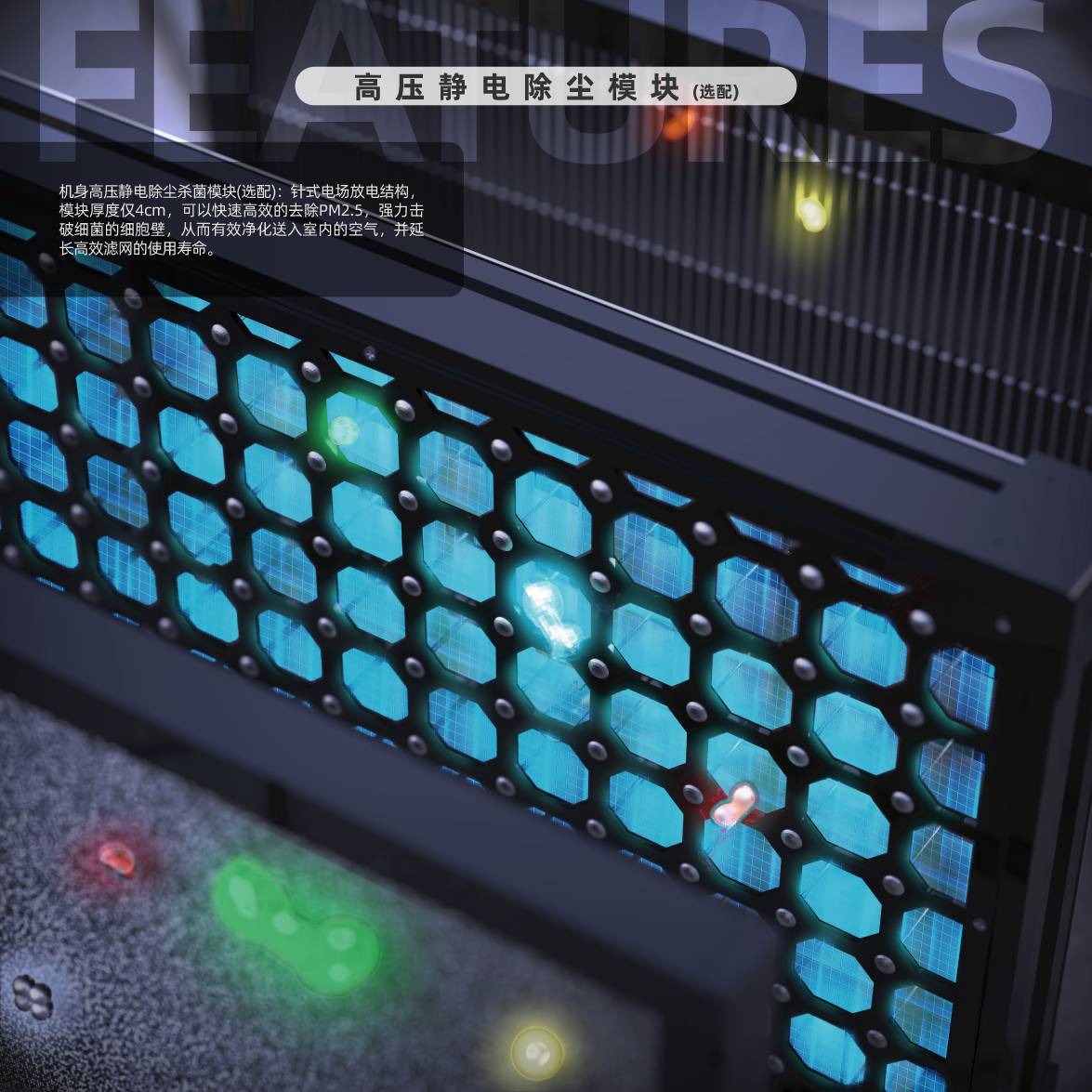

High-Voltage Electrostatic Precipitator (Optional)

Optional ESP module captures ultra-fine particles missed by mechanical filters — including PM1.0, smoke, and nano-aerosols — using charged electrostatic fields.

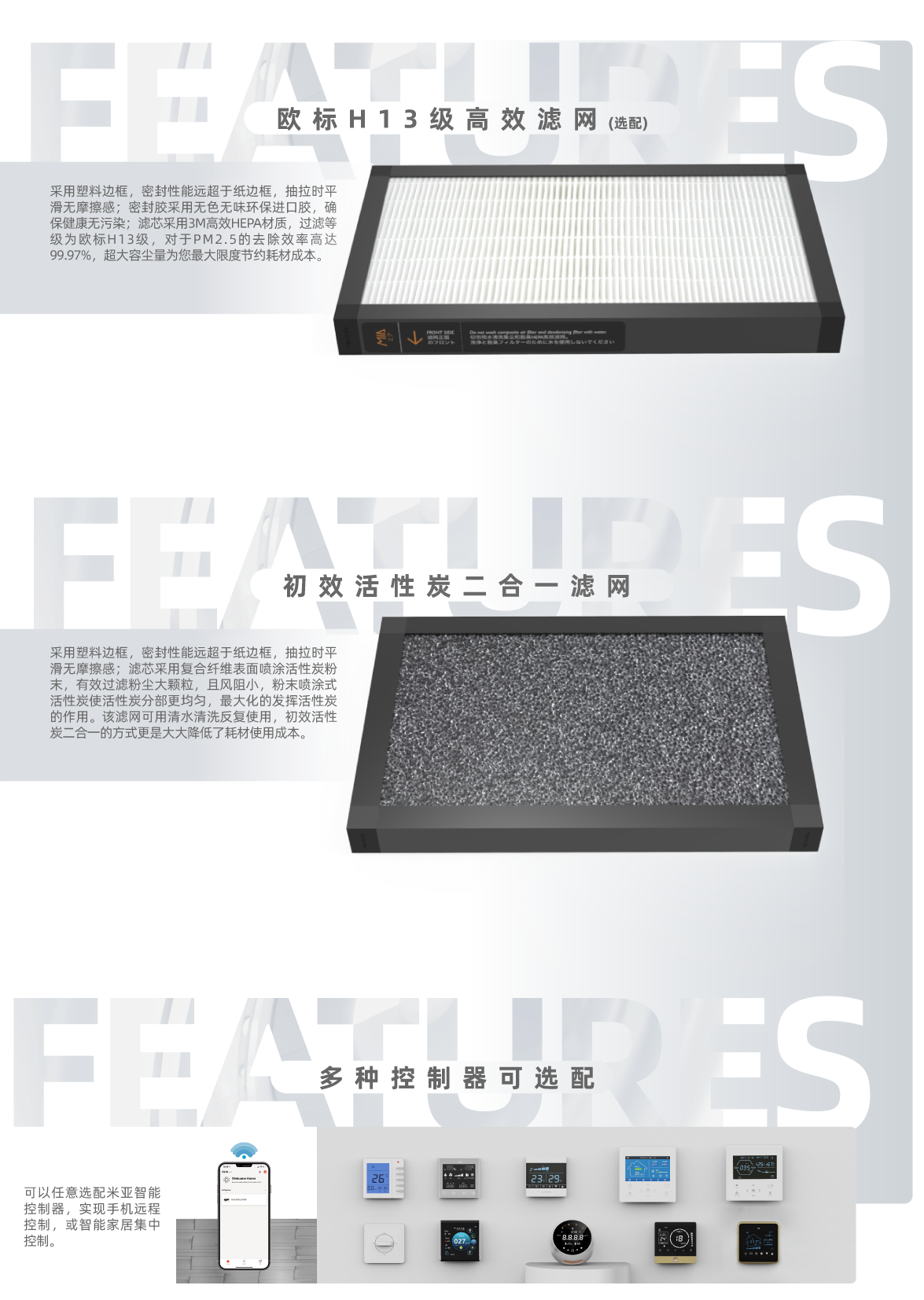

H13 HEPA + Activated Carbon Combo

European standard H13 HEPA filter captures 99.95% of particles ≥0.3μm. Optional activated carbon combo filter adds VOC, formaldehyde, and odour removal in a single stage.

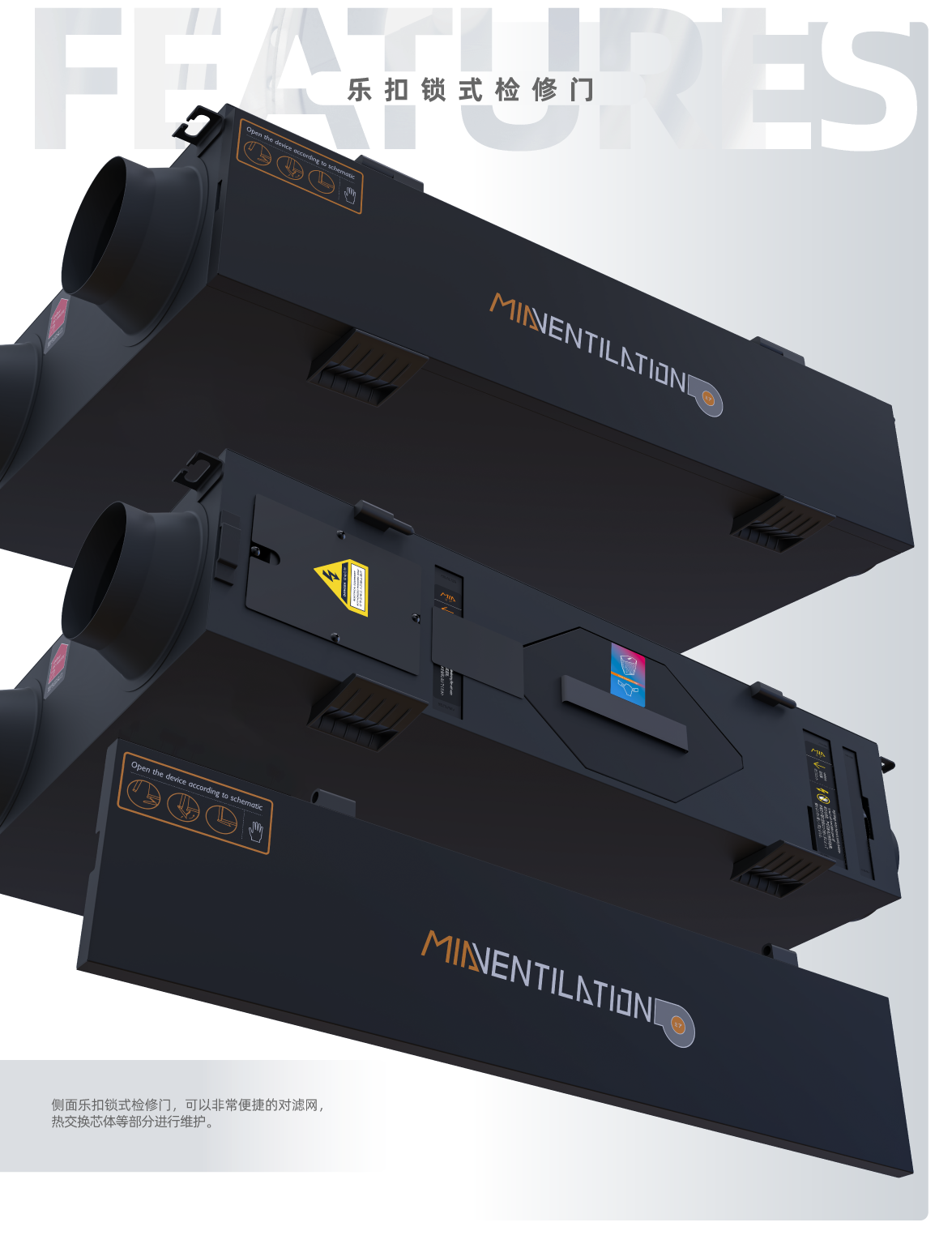

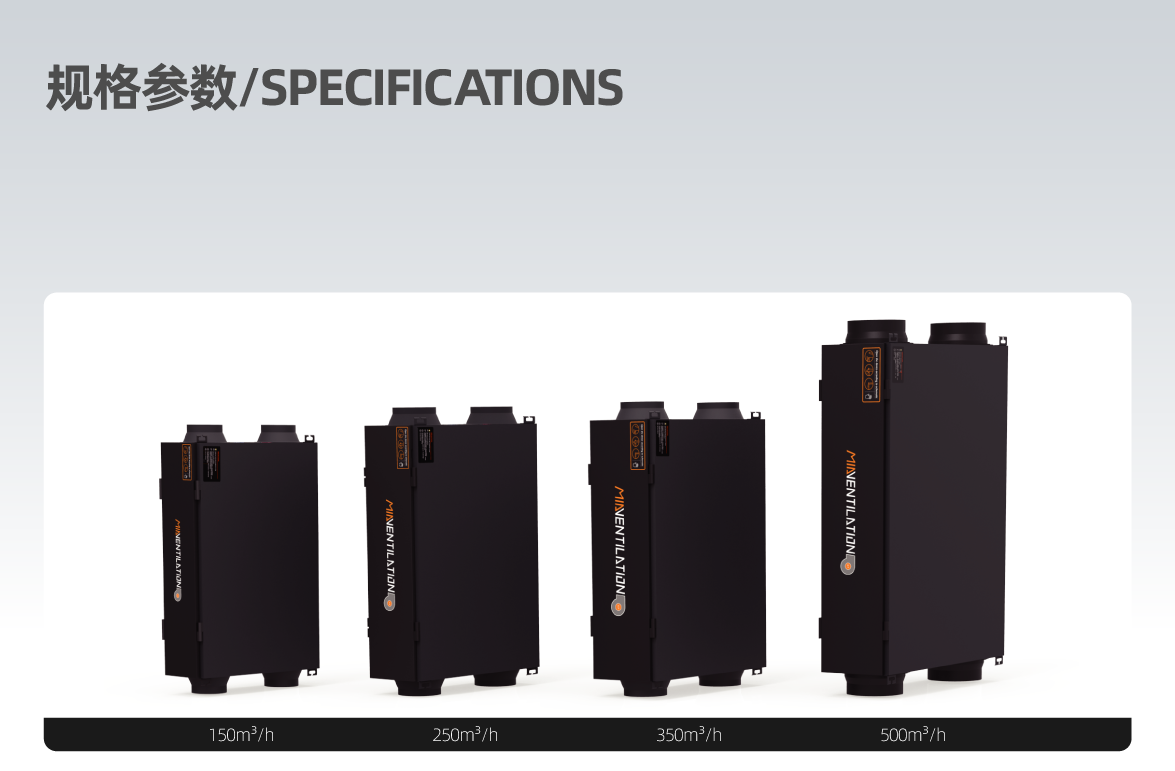

4 Capacity Options + Latch Access Panel

Available in 150, 250, 350, and 500 m³/h. Tool-free latch access panel for filter replacement and maintenance — no screwdriver required.

Photo Gallery

Product Showcase

Models

Choose Your Model

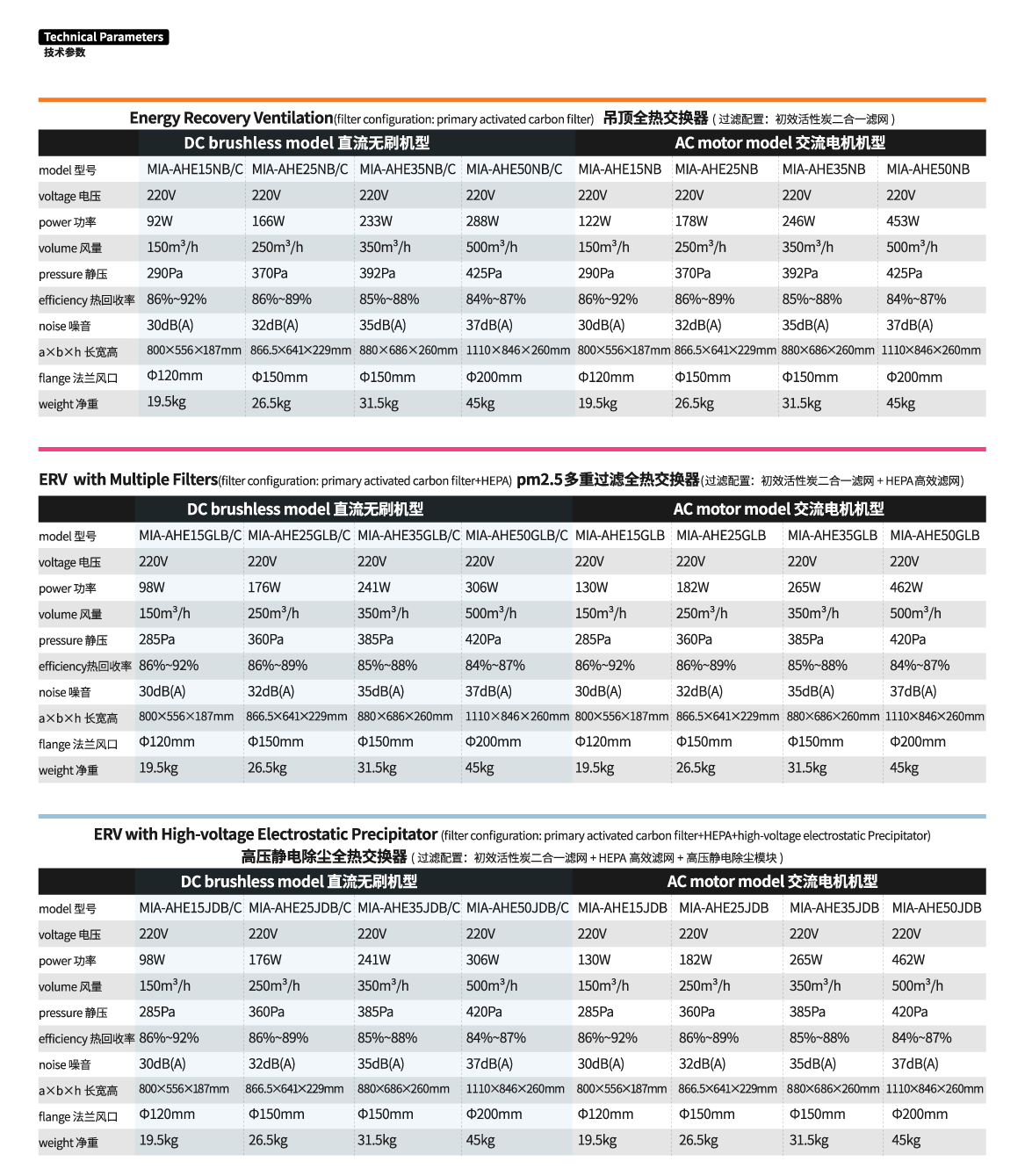

Specifications

Technical Parameters

DC Brushless (BLDC) models — NB (Standard) / GLB (with ESP) / JDB (with H13 HEPA)

Model	Flow Rate	Power	Efficiency	Noise	Duct Ø	Dimensions (mm)
MIA-AHE15NB/C	150 m³/h	40 W	80–92%	22–38 dB(A)	Ø120	921.6 × 555.2 × 187
MIA-AHE15GLB/C (ESP)	150 m³/h	40 W	80–92%	22–38 dB(A)	Ø120	921.6 × 555.2 × 187
MIA-AHE15JDB/C (H13)	150 m³/h	40 W	80–92%	22–38 dB(A)	Ø120	921.6 × 555.2 × 187
MIA-AHE25NB/C	250 m³/h	70 W	80–92%	25–40 dB(A)	Ø150	986.5 × 641 × 228.8
MIA-AHE25GLB/C (ESP)	250 m³/h	70 W	80–92%	25–40 dB(A)	Ø150	986.5 × 641 × 228.8
MIA-AHE25JDB/C (H13)	250 m³/h	70 W	80–92%	25–40 dB(A)	Ø150	986.5 × 641 × 228.8
MIA-AHE35NB/C	350 m³/h	110 W	80–92%	28–42 dB(A)	Ø150	1000.4 × 686 × 305.4
MIA-AHE50NB/C	500 m³/h	180 W	80–92%	30–45 dB(A)	Ø200	1270.05 × 845.94 × 260

* /C suffix = with carbon filter. NB = Standard · GLB = with ESP · JDB = with H13 HEPA. AC motor variants also available.
