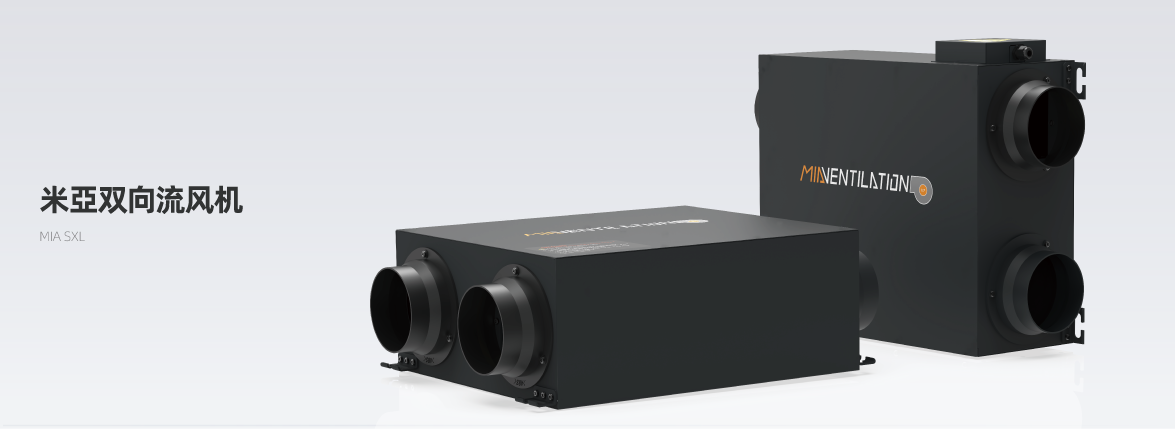

SXL Series Bidirectional Flow
Series 03 · Bidirectional Flow

SXL Series

MIA Bidirectional Flow Ventilators — simultaneous supply and exhaust via cross-flow heat exchanger. Whisper-quiet for bedrooms and living spaces.

H13
HEPA Grade
150–2 000
m³/h Flow Range
2-way
Simultaneous Air Exchange
3
Sub-product Lines
Product Lines

Three SXL Configurations

Residential, commercial, and high-efficiency ionic filtration variants — all with bidirectional cross-flow heat recovery.

MIA SXL Residential
Residential
MIA SXL — Bidirectional Residential ERV
Compact bidirectional unit. Simultaneous supply and exhaust through cross-flow enthalpy exchanger. H13 HEPA + carbon, AC and DC brushless variants.
Flow Rate150–1 000 m³/h
FilterH13 HEPA + Carbon
Noise25–43 dB(A)
SXL150SXL300 SXL500JCSXL1000JC
View Full Details →
 MIA GL SXL Commercial
Commercial
MIA GL·SXL — Multi-filter Commercial
Large-scale bidirectional with ESP + H13 HEPA + carbon multi-stage filtration. For offices, hotels, and commercial buildings with continuous operation.
Flow Rate500–2 000 m³/h
FilterESP + H13 + Carbon
ApplicationCommercial
GL·SXL500GL·SXL1000 GL·SXL2000
View Full Details →
 MIA JD SXL Ionic
Premium · Ionic Filtration
MIA JD·SXL — Ionic Dust Removal ERV
Ionic electrostatic precipitation + cross-flow heat recovery. PM2.5 removal >99.5%. For heavily polluted environments and premium residential projects.
Flow Rate150–1 000 m³/h
FilterIonic ESP + H13 + Carbon
PM2.5 Removal>99.5%
JD·SXL150JD·SXL300 JD·SXL1000JC
View Full Details →
Photo Gallery

Product Showcase

SXL Residential Duo

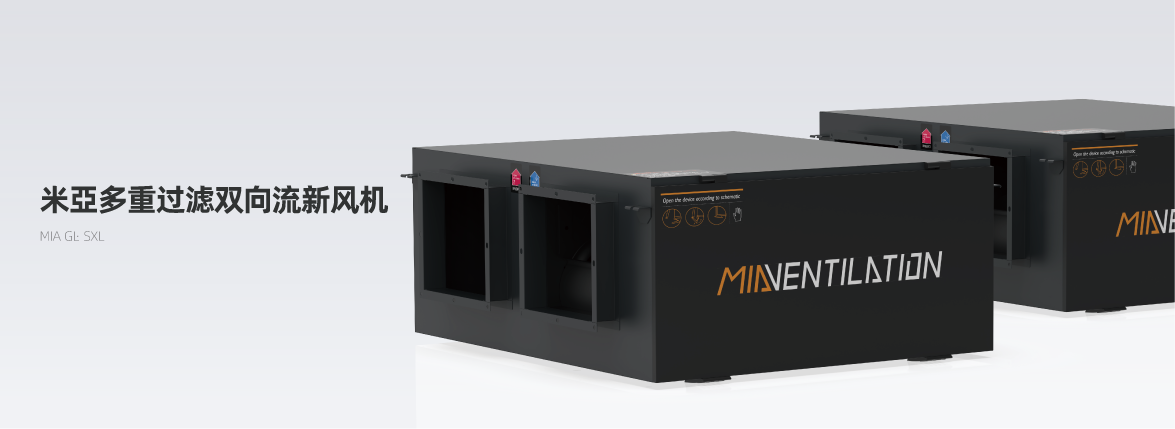

GL SXL Commercial

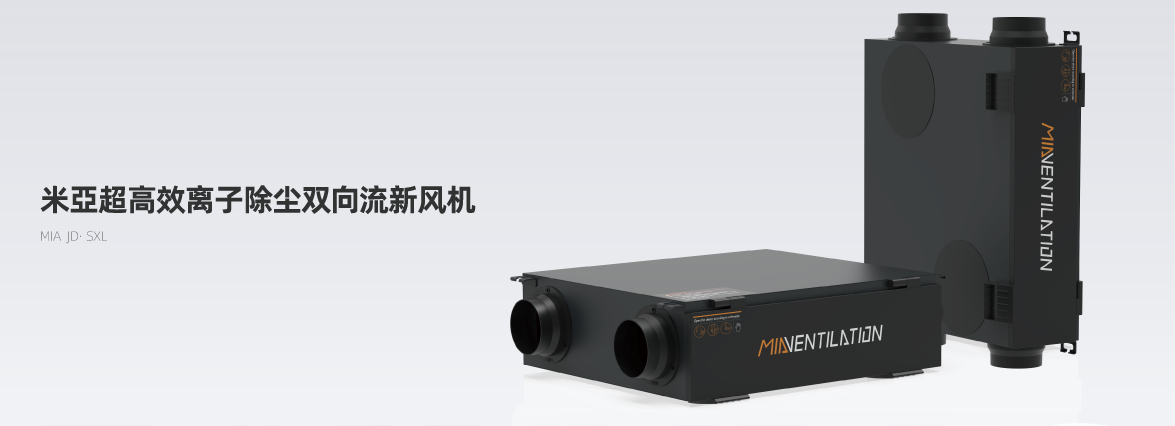

JD SXL Ionic

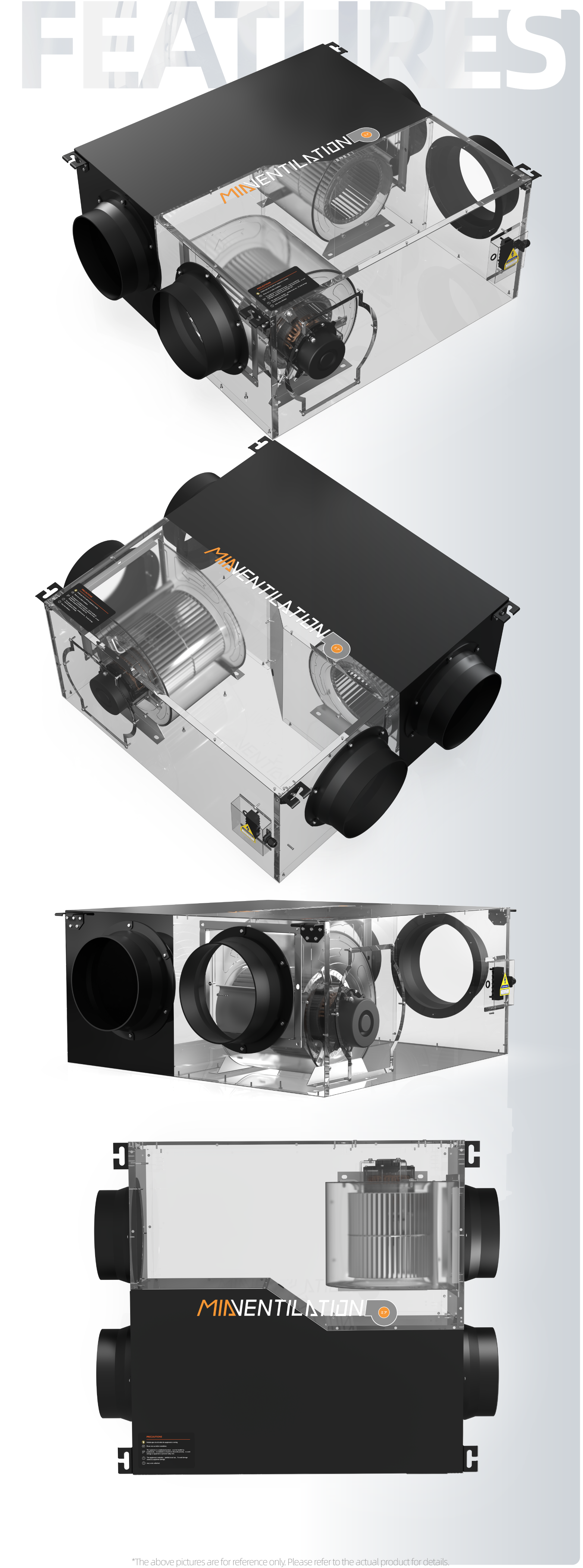

Internal Cross-flow Core

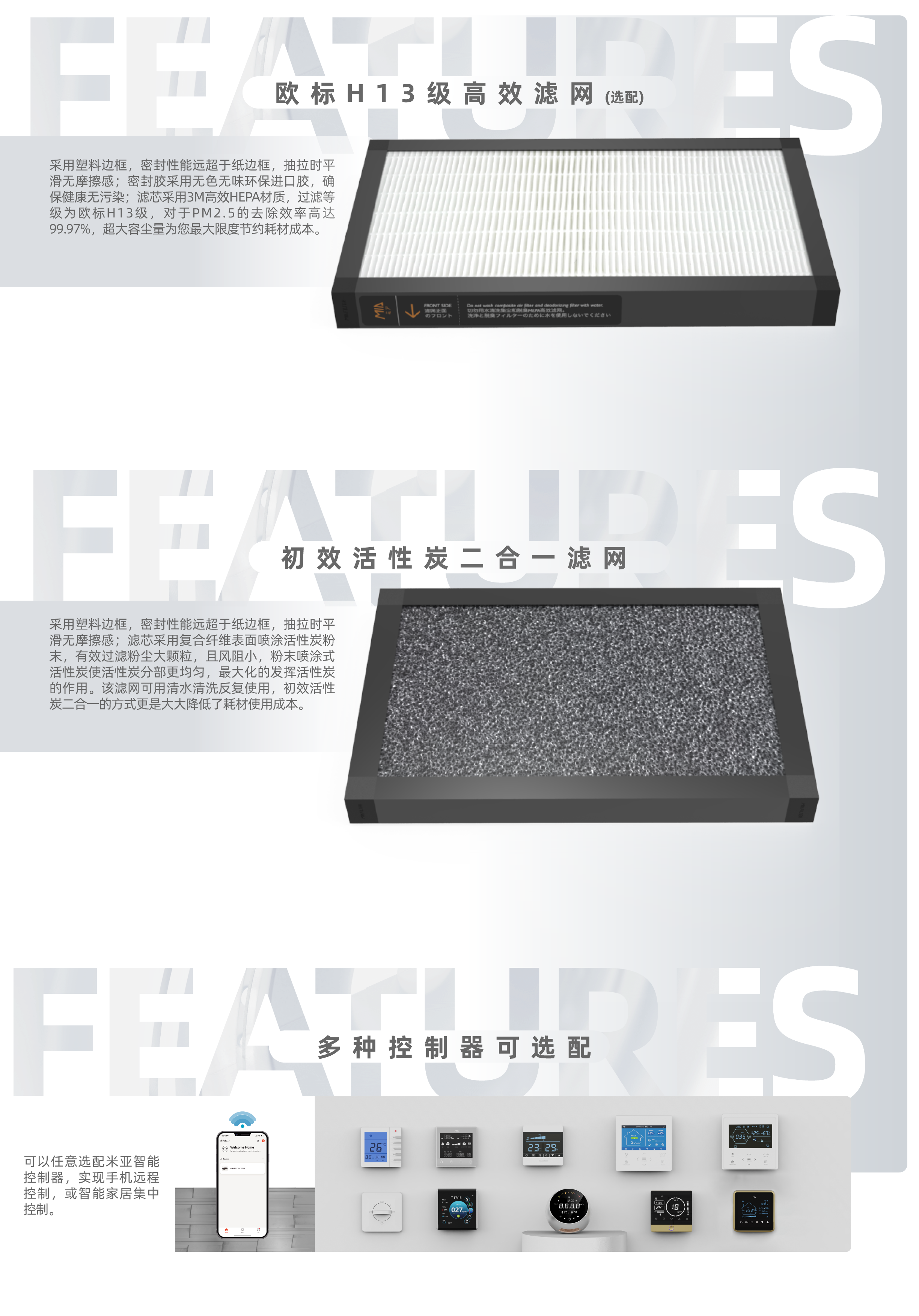

H13 HEPA + Activated Carbon Filters
Specifications

Technical Parameters (SXL Residential)

Flow Rate150 – 500 m³/h
Heat ExchangeCross-flow Enthalpy Core
Filter GradeH13 HEPA (EU standard)
Secondary FilterActivated Carbon Combo
Noise Level25 – 40 dB(A)
Power Supply220 V / 50 Hz
ControlSmart Controller + App
ApplicationResidential · Commercial
CertificationsCE · RoHS · EU H13

Interested in the
SXL Series?

Our engineers will help you choose the right bidirectional model for your space.
