Pipeless Series Wall-mounted
Series 02 · Wall-mounted · No Ductwork

Pipeless Series

MIA Wall-mounted ventilation systems — full heat recovery with a single core drill. Easy retrofit, no ductwork, minimal construction.

85%
Heat Recovery
50–800
m³/h Flow Range
150 mm
Single Core Drill
3
Model Lines
Product Lines

Three Pipeless Configurations

Flat panel, cylindrical core-drill unit, and full-height vertical cabinet — all without ductwork.

MIA Wall Panel
Residential
MIA-BG Wall-mounted ERV
Ultra-slim flush panel installs directly in the wall. Clean modern appearance, no visible ductwork. ESP + H13 HEPA + activated carbon filtration.
Flow Rate150–300 m³/h
Noise24–32 dB(A)
Efficiency≥85%
MIA-AHE15BGLMIA-AHE25BGL MIA-AHE30BGL
View Full Details →
 BGL Cylindrical
Residential · Retrofit
BGL Cylindrical Core-drill Unit
A single 150 mm hole is all it takes. The cylindrical unit fits into any external wall with a standard core drill — installs in hours.
Flow Rate50–150 m³/h
Core DrillØ150 mm
FilterG4 + F7
MIA-ANS2E10MIA-ANS3B-30
View Full Details →
 MIA Vertical Cabinet ERV
Residential / Light Commercial
MIA Vertical Cabinet ERV
Full-height white cabinet with high-performance propeller fans. No ductwork — wall-mount and connect to exterior wall ports. Covers large apartments and villas.
Flow Rate400–900 m³/h
Efficiency88–91.5%
Power312–332 W
MIA-AHE600JDMIA-AHE900L MIA-AHE90JD
View Full Details →
Photo Gallery

Product Showcase

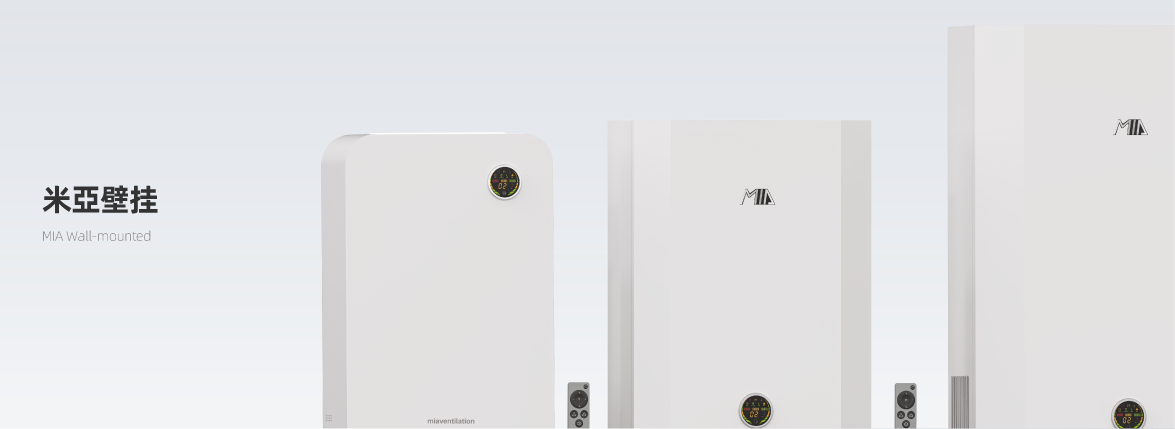

Pipeless Wall Panel Lineup

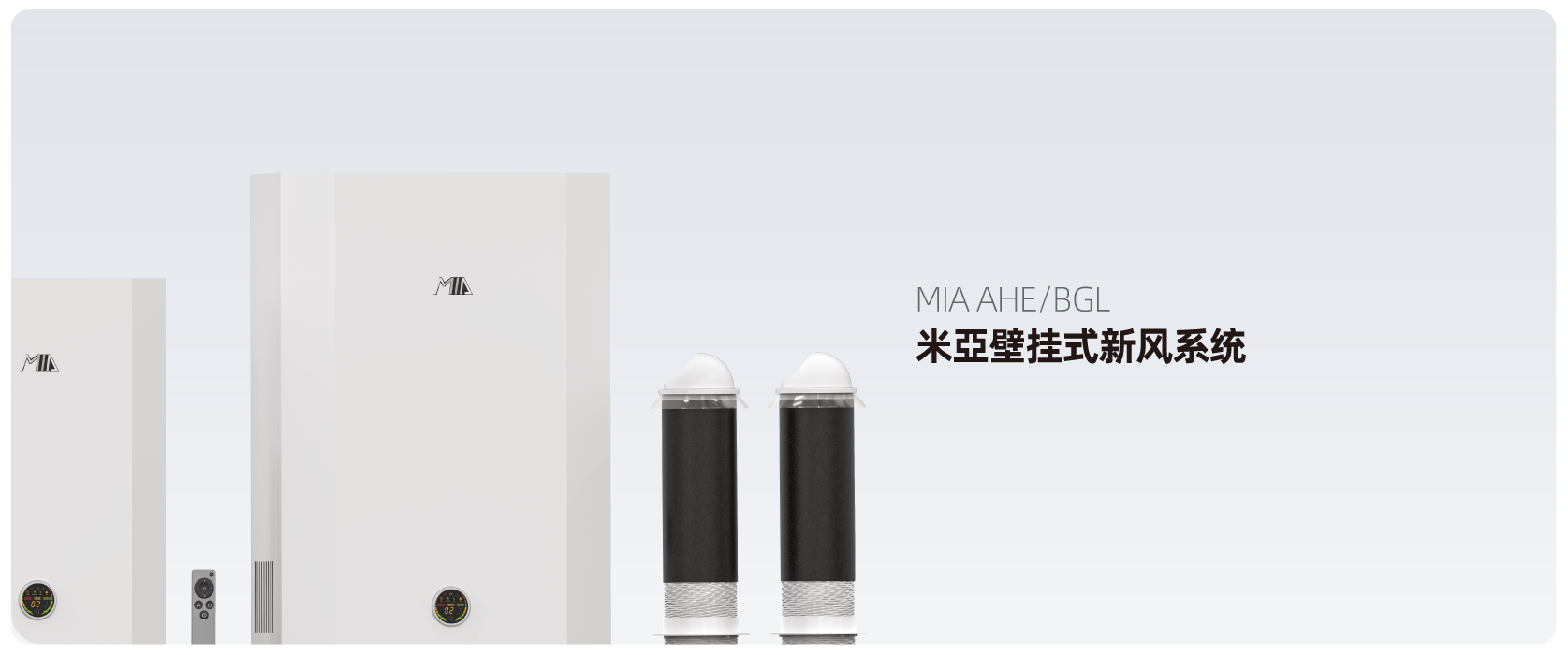

Wall Lineup with Cylindrical Units

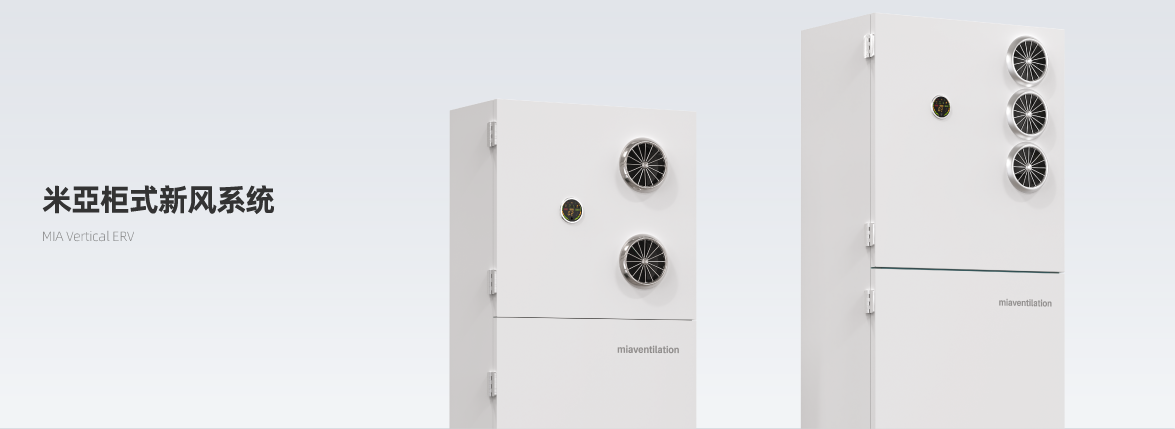

Vertical Cabinet ERV

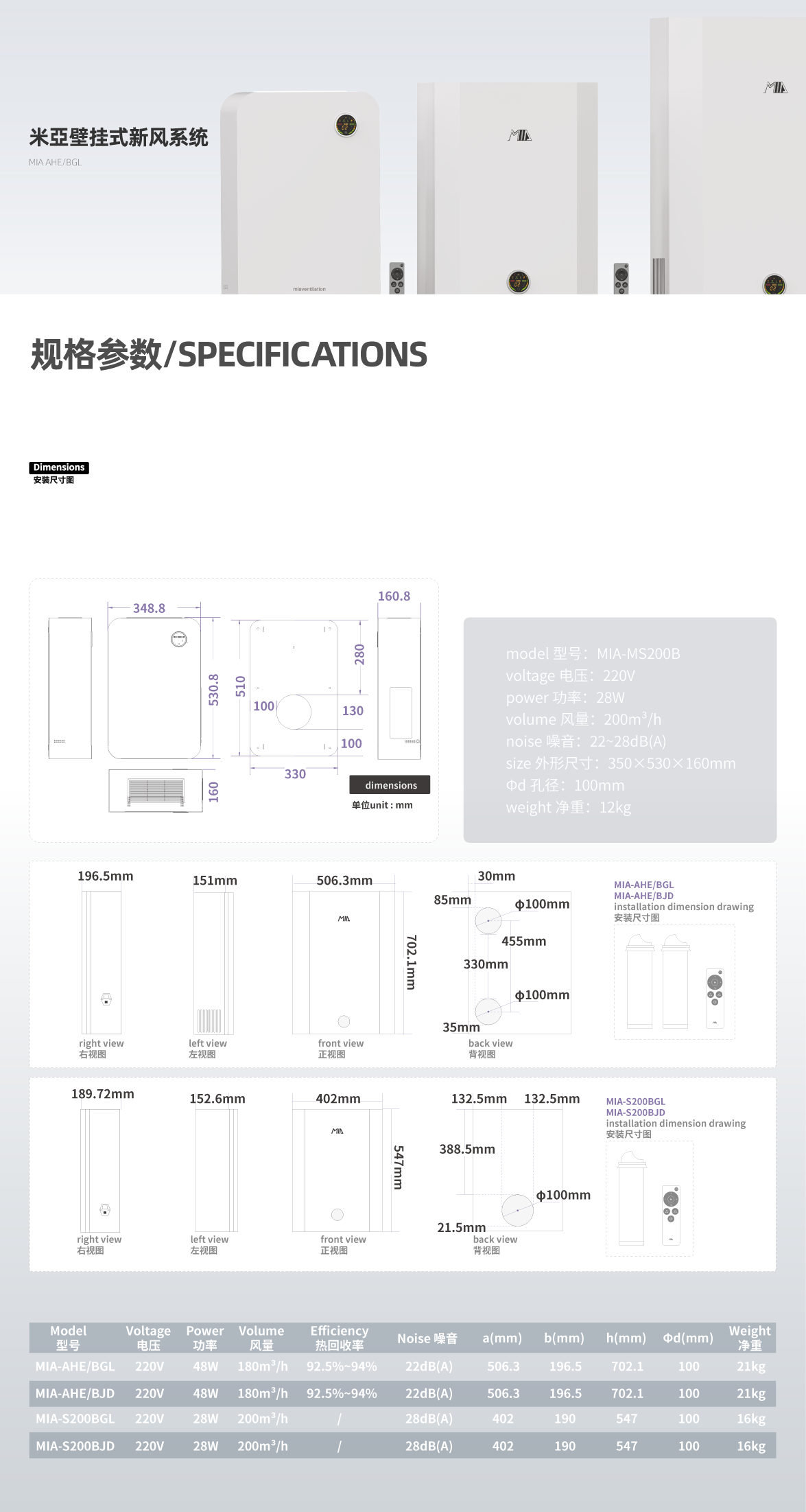

Specifications & Dimensions
Pipeless Features
Specifications

Technical Parameters (BGL Wall Panel)

Heat RecoveryUp to 85%
Air Flow Rate50 – 200 m³/h
Noise Level24 – 35 dB(A)
InstallationWall core drill Ø150 mm
FilterG4 + F7 Dual-stage
Dimensions390 × 240 × 130 mm
Power25 – 45 W
Power Supply220 V / 50 Hz
ApplicationResidential · Retrofit
CertificationsCE · RoHS
