SXL Series · Model 02

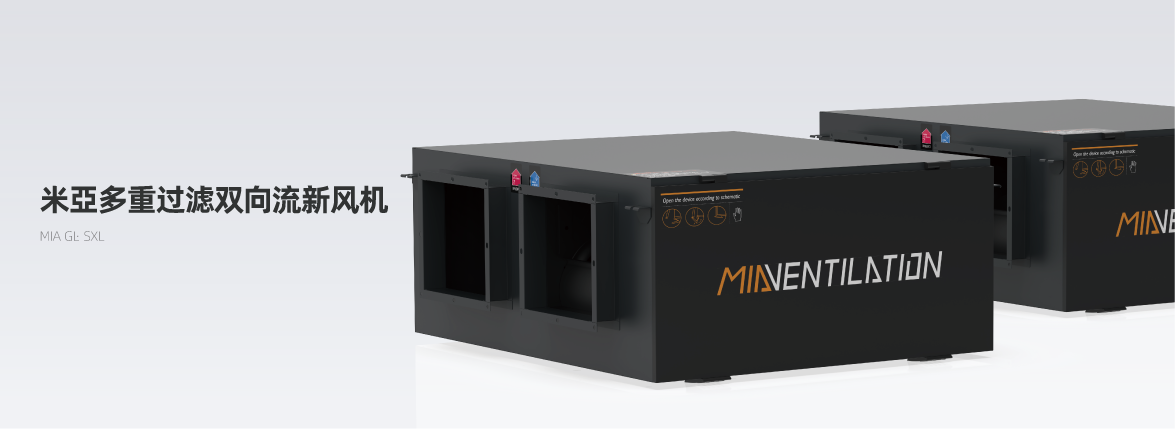

MIA GL·SXL Multi-filter ERV

米亚多重过滤双向流新风机 — Large-capacity commercial bidirectional ERV with multi-stage filtration. High-volume heat recovery for offices, hotels, schools, and commercial buildings — with full ESP, H13 HEPA, and activated carbon filtration.

Key Features

Commercial Volume. Multi-stage Filtration.

The GL·SXL scales the bidirectional SXL platform to commercial airflow volumes — with a reinforced housing, multiple exchanger cores, and a full commercial filtration suite.

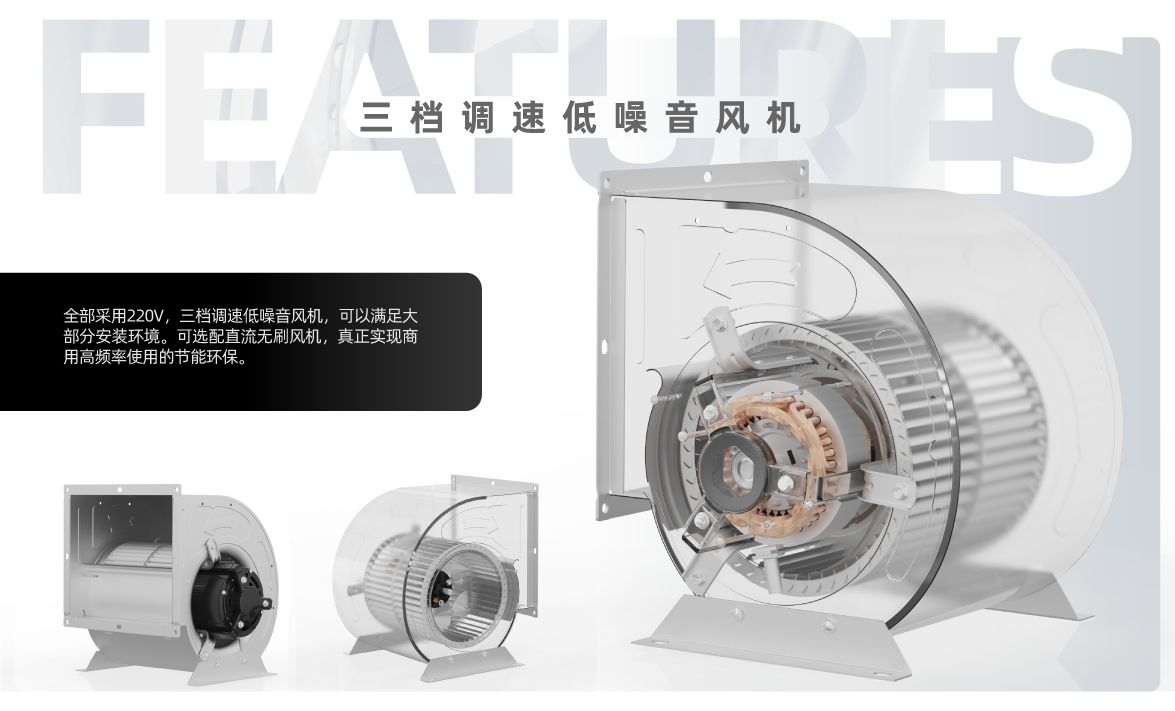

High-pressure 3-Speed Centrifugal Fan

Commercial-grade centrifugal fan with 3-speed control and BLDC brushless option. Designed for continuous operation — delivers high static pressure to overcome commercial duct resistance while maintaining low noise.

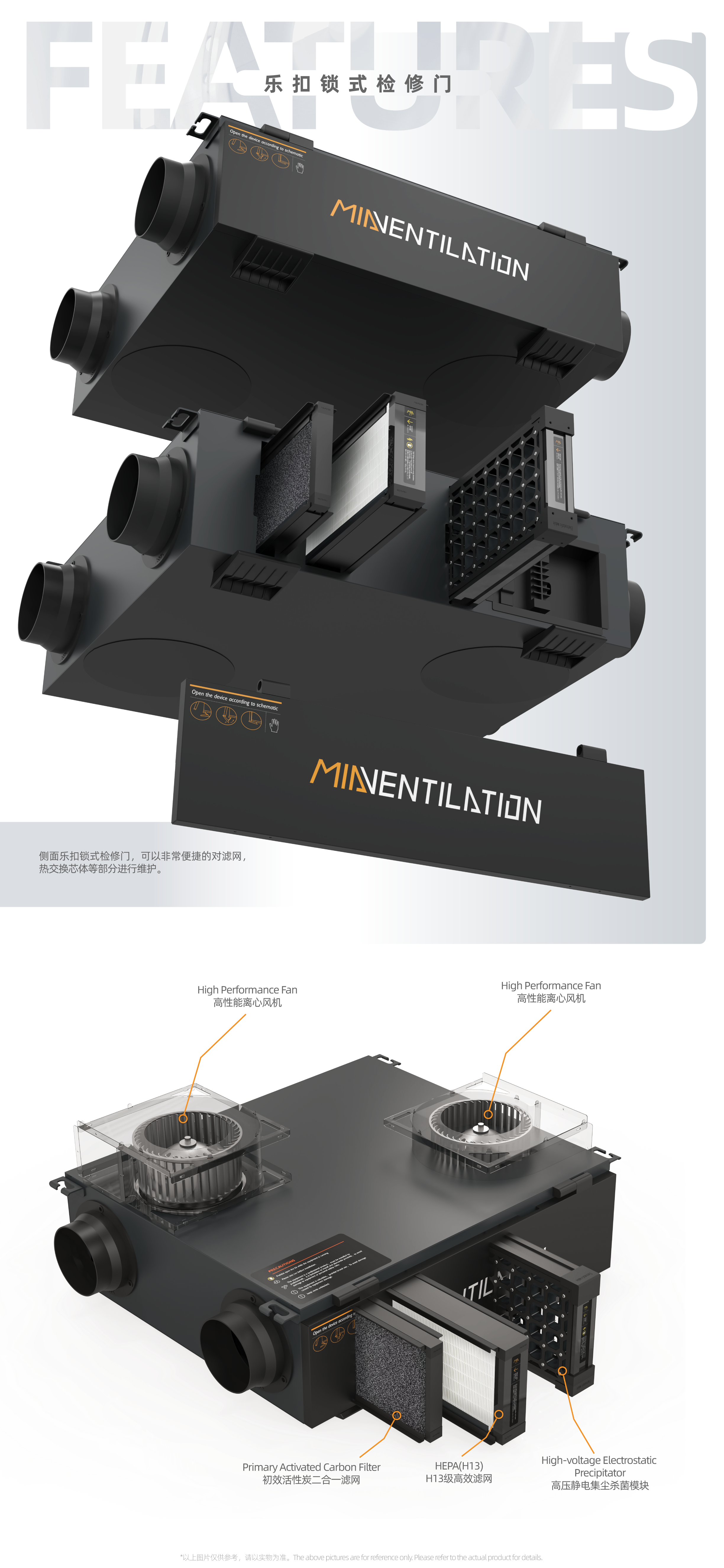

Latch-lock Maintenance Access + Multi-core Exchanger

Tool-free latch-lock inspection door for fast filter replacement. Multiple cross-flow polymer exchanger cores ensure high thermal efficiency at commercial volumes. Each core is independently washable and replaceable.

ESP + H13 HEPA + Activated Carbon Filtration

Full commercial filtration suite: high-voltage ESP electrostatic precipitator, European H13 HEPA filter (removes 99.95% PM2.5), and activated carbon combo filter for VOC and odour elimination.

Photo Gallery

Product Showcase

Models

Choose Your Model

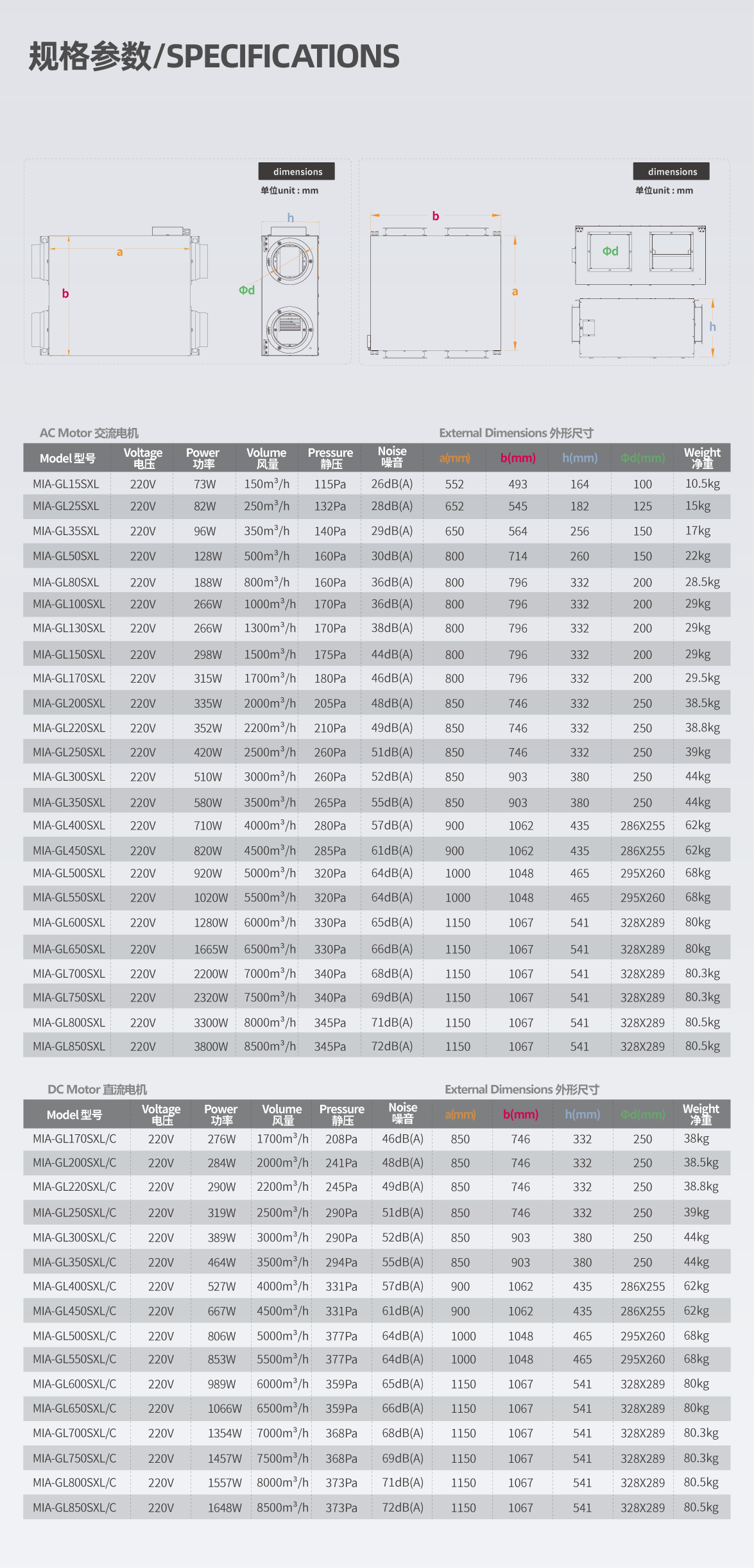

Specifications

Technical Parameters

AC and DC variants available. 220V for lower capacity, 380V for high-volume commercial units.

Model	Type	Voltage	Power	Flow Rate	Pressure	Noise	Weight
MIA-GL·SXL500	AC	220V	173W	500 m³/h	40Pa	36 dB(A)	24.5 kg
MIA-GL·SXL600	AC	220V	200W	600 m³/h	45Pa	40 dB(A)	28 kg
MIA-GL·SXL800	AC	220V	260W	800 m³/h	50Pa	42 dB(A)	35.5 kg
MIA-GL·SXL1000	AC	220V	329W	1000 m³/h	55Pa	46 dB(A)	40 kg
MIA-GL·SXL1500	AC	380V	450W	1500 m³/h	60Pa	50 dB(A)	56 kg
MIA-GL·SXL2000	AC	380V	600W	2000 m³/h	65Pa	54 dB(A)	68 kg
MIA-GL·SXL500JC	DC	220V	62W	500 m³/h	40Pa	33 dB(A)	24.5 kg
MIA-GL·SXL800JC	DC	220V	120W	800 m³/h	50Pa	40 dB(A)	35.5 kg
MIA-GL·SXL1000JC	DC	220V	150W	1000 m³/h	55Pa	43 dB(A)	40 kg

* JC = DC brushless motor variant. ESP, H13 HEPA, and activated carbon filters included as standard.

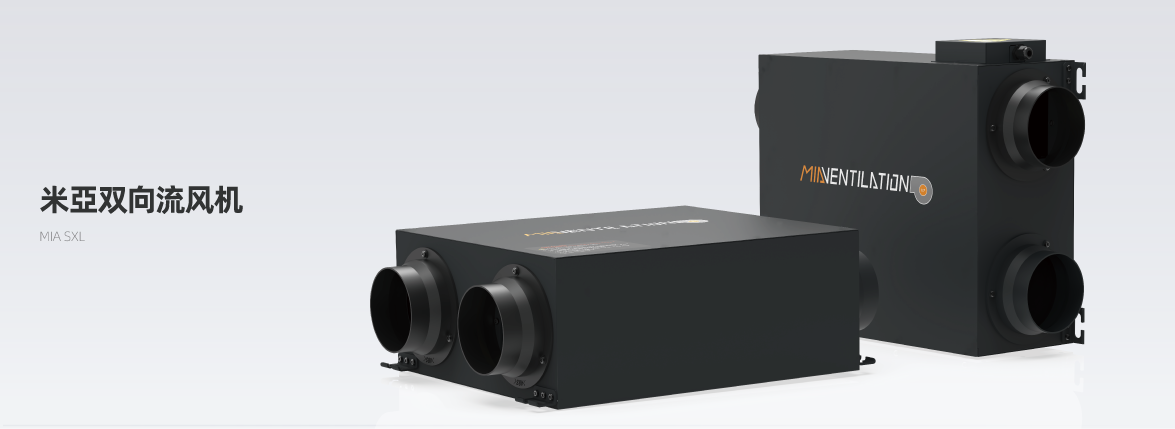

SXL Series

Other SXL Models

Interested in this model?

The GL·SXL delivers full bidirectional heat recovery at commercial scale — with multi-stage filtration for demanding air quality requirements. Contact us to size and specify the right unit.

Get a Quote SXL Series Overview
