SXL Series · Model 01

MIA SXL Residential ERV

米亚双向流新风机 — Compact bidirectional heat recovery ventilator for homes and apartments. Simultaneous supply and exhaust through a cross-flow enthalpy exchanger. No mixing, full heat recovery, H13 HEPA + activated carbon filtration.

Key Features

True Bidirectional. Full Recovery.

The MIA SXL supplies fresh air and exhausts stale air simultaneously — through a cross-flow enthalpy core that captures both heat and moisture.

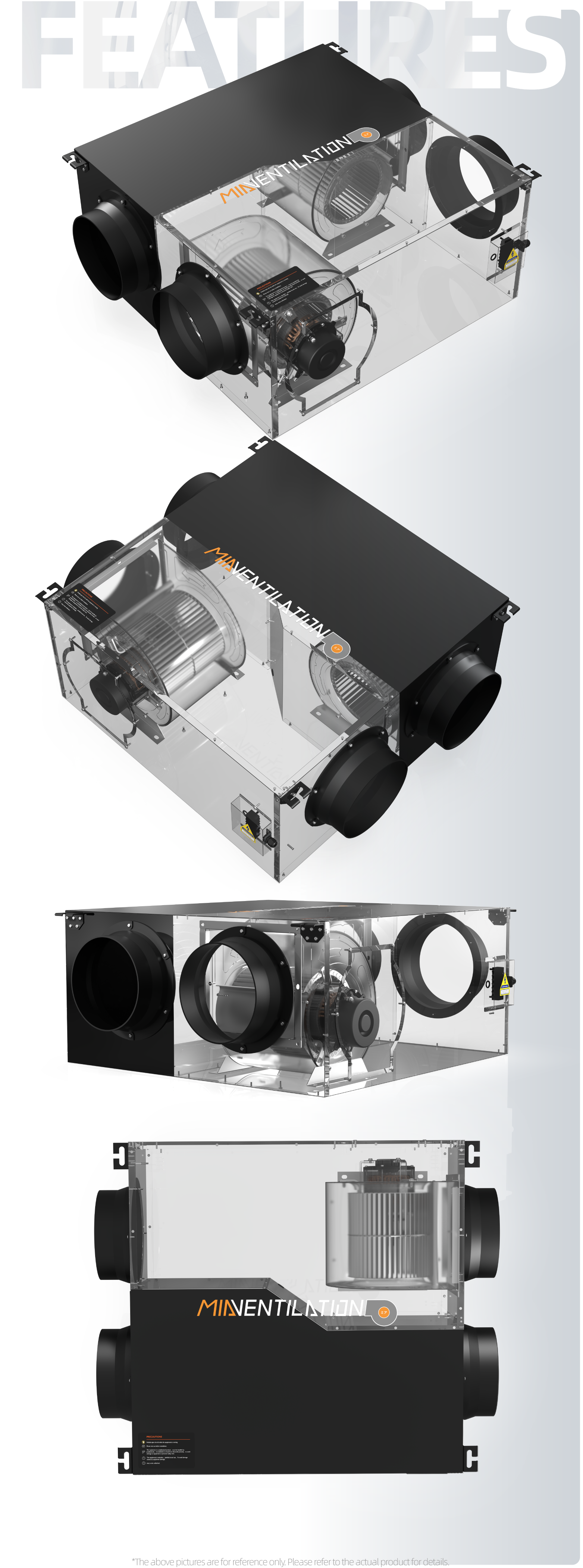

Cross-flow Enthalpy Heat Exchanger

Simultaneous supply and exhaust air streams cross through a high-efficiency polymer enthalpy core — recovering sensible heat and latent moisture without mixing the two airstreams. No bypass damper needed.

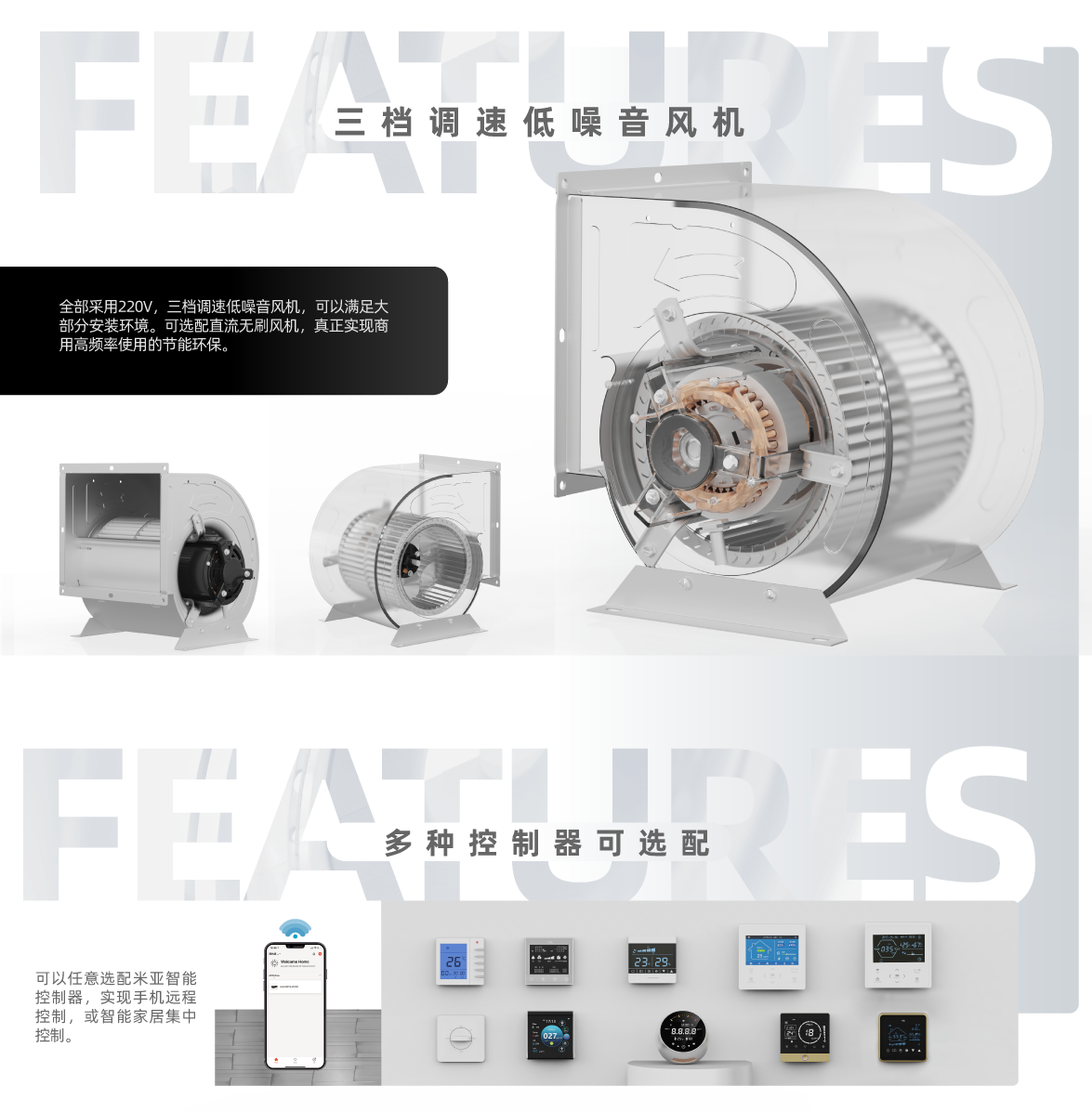

3-Speed Low-Noise Centrifugal Fan

Dual centrifugal fans — one for supply, one for exhaust — operate at three selectable speeds. Whisper-quiet at low speed: as low as 25 dB(A), suitable for bedroom installation.

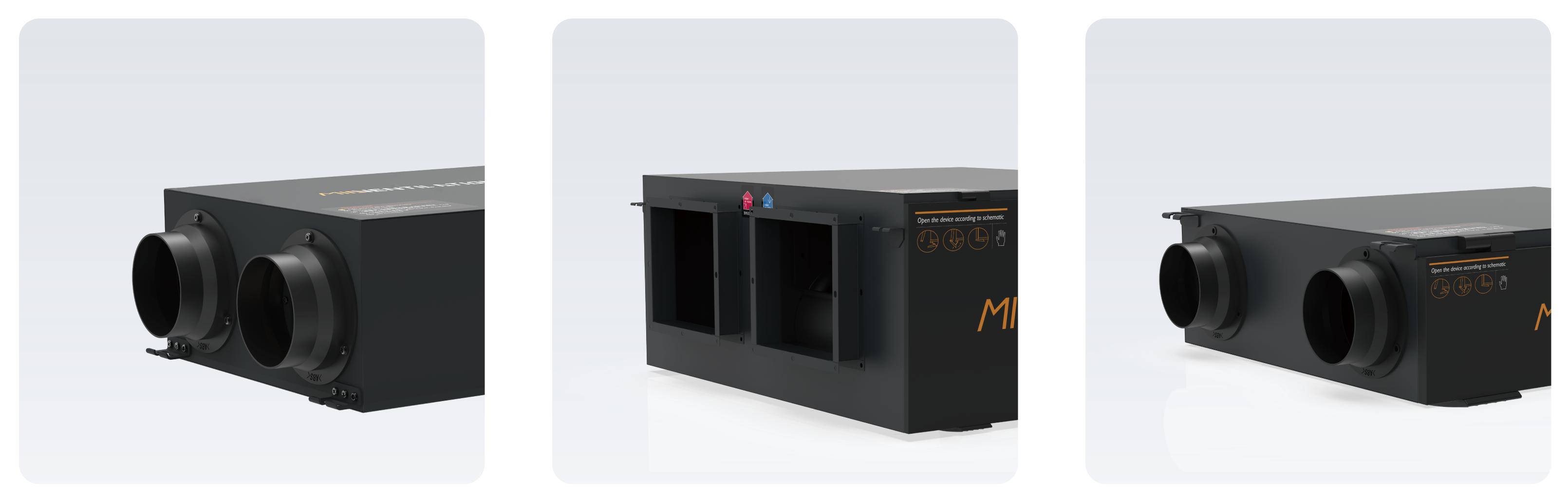

Ceiling-mount or Above-cabinet Install

Compact flat profile mounts above suspended ceilings or inside false-ceiling voids. Connects to standard round duct ports for fresh air intake and exhaust. AC 220V and DC brushless variants available.

Photo Gallery

Product Showcase

Models

Choose Your Model

Specifications

Technical Parameters

AC 220V and DC brushless variants. All models include H13 HEPA + activated carbon combo filter.

Model	Type	Voltage	Power	Flow Rate	Noise	Dimensions (mm)	Weight
MIA-SXL150	AC	220V	75W	150 m³/h	25 dB(A)	470 × 350 × 200	11.7 kg
MIA-SXL200	AC	220V	88W	200 m³/h	28 dB(A)	470 × 350 × 200	12 kg
MIA-SXL300	AC	220V	115W	300 m³/h	32 dB(A)	564 × 460 × 255	13.8 kg
MIA-SXL400	AC	220V	138W	400 m³/h	35 dB(A)	564 × 460 × 255	16 kg
MIA-SXL500	AC	220V	173Pa	500 m³/h	36 dB(A)	700 × 544 × 312	17 kg
MIA-SXL200JC	DC	220V	27W	200 m³/h	26 dB(A)	470 × 350 × 200	11.7 kg
MIA-SXL300JC	DC	220V	38W	300 m³/h	28 dB(A)	564 × 460 × 255	13.8 kg
MIA-SXL500JC	DC	220V	62W	500 m³/h	33 dB(A)	700 × 544 × 312	17 kg
MIA-SXL800JC	DC	220V	120W	800 m³/h	40 dB(A)	850 × 697 × 400	29 kg
MIA-SXL1000JC	DC	220V	150W	1000 m³/h	43 dB(A)	1049 × 697 × 400	35 kg

* JC = DC brushless motor. Multiple controller options: wired panel, wireless remote, smart Wi-Fi.

SXL Series

Other SXL Models

Interested in this model?

The MIA SXL delivers fresh, filtered air and removes stale air simultaneously — with no duct mixing and no energy waste. Contact us to configure the right model.
