SXL Series · Model 03

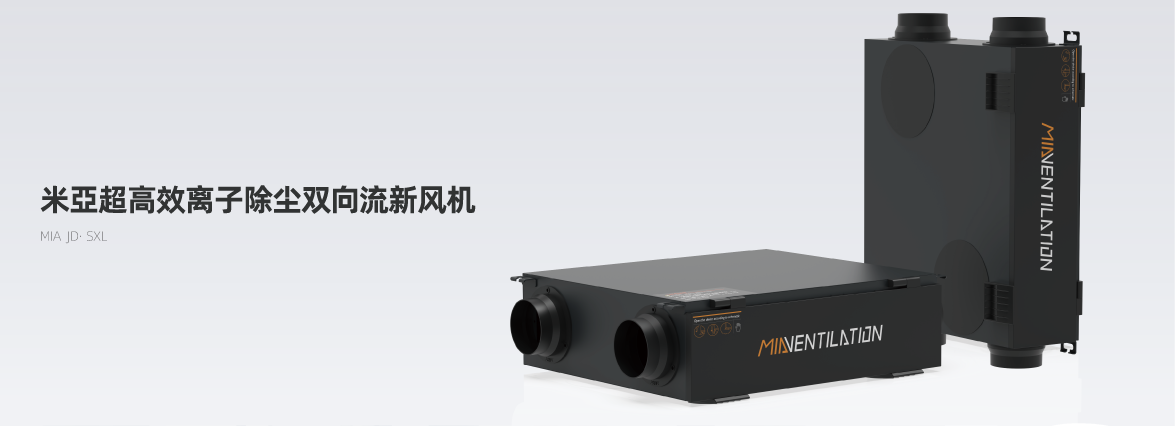

MIA JD·SXL Ionic ERV

米亚超高效离子除尘双向流新风机 — Ultra-high efficiency bidirectional ERV combining cross-flow heat recovery with high-voltage ionic electrostatic precipitation. PM2.5 removal exceeds 99.5% — the premium filtration choice for allergy-sensitive and health-critical environments.

Key Features

Ionic Precision. Maximum Air Purity.

The JD·SXL adds a high-voltage ionic electrostatic precipitation module to the standard SXL platform — capturing ultra-fine particles including PM1.0, bacteria, and virus-sized particles.

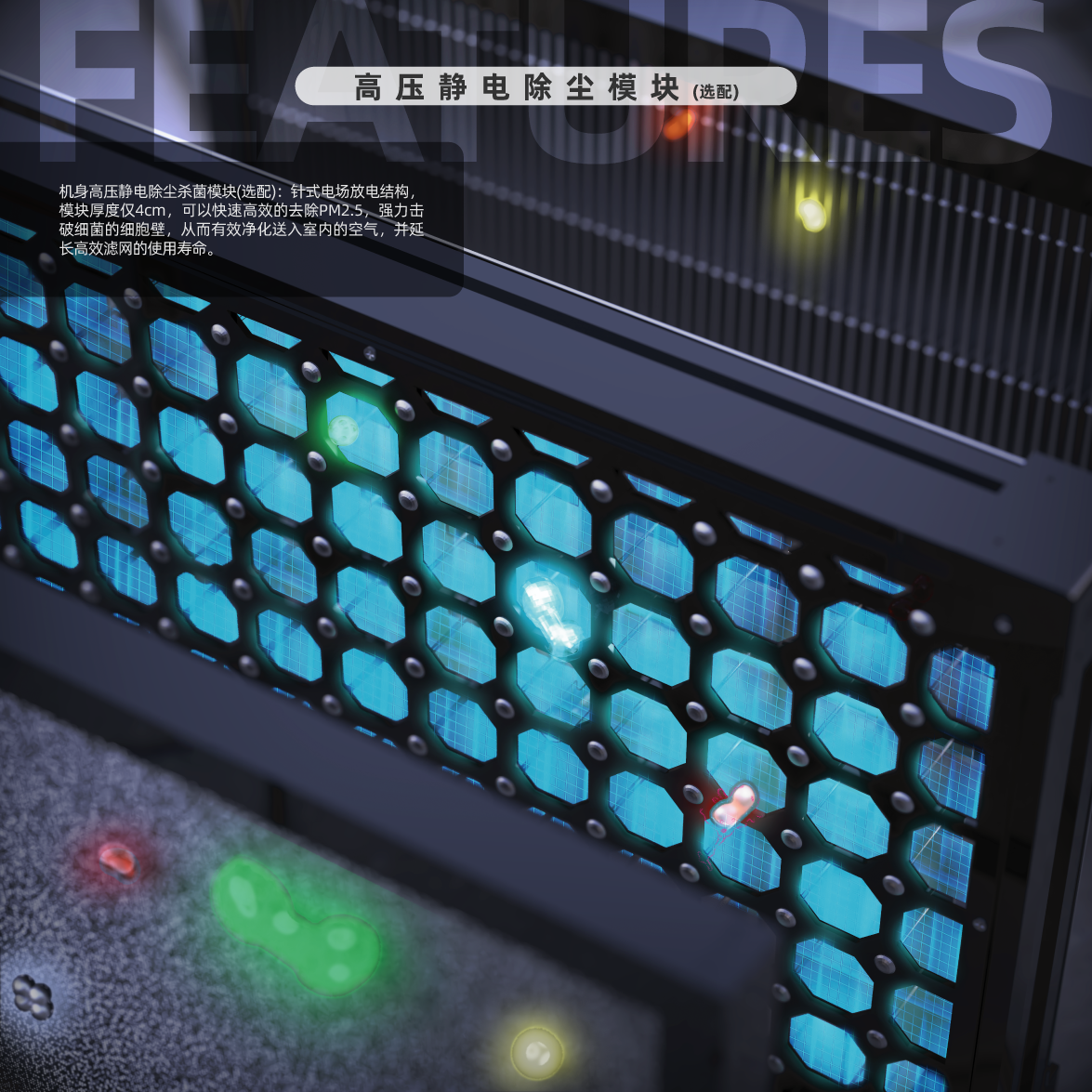

High-voltage Ionic ESP Module

Built-in high-voltage electrostatic precipitation module generates an ionic field that charges and captures ultra-fine particles — PM1.0, bacteria, and airborne viruses — with greater than 99.5% PM2.5 capture efficiency. Washable plates, no replacement needed.

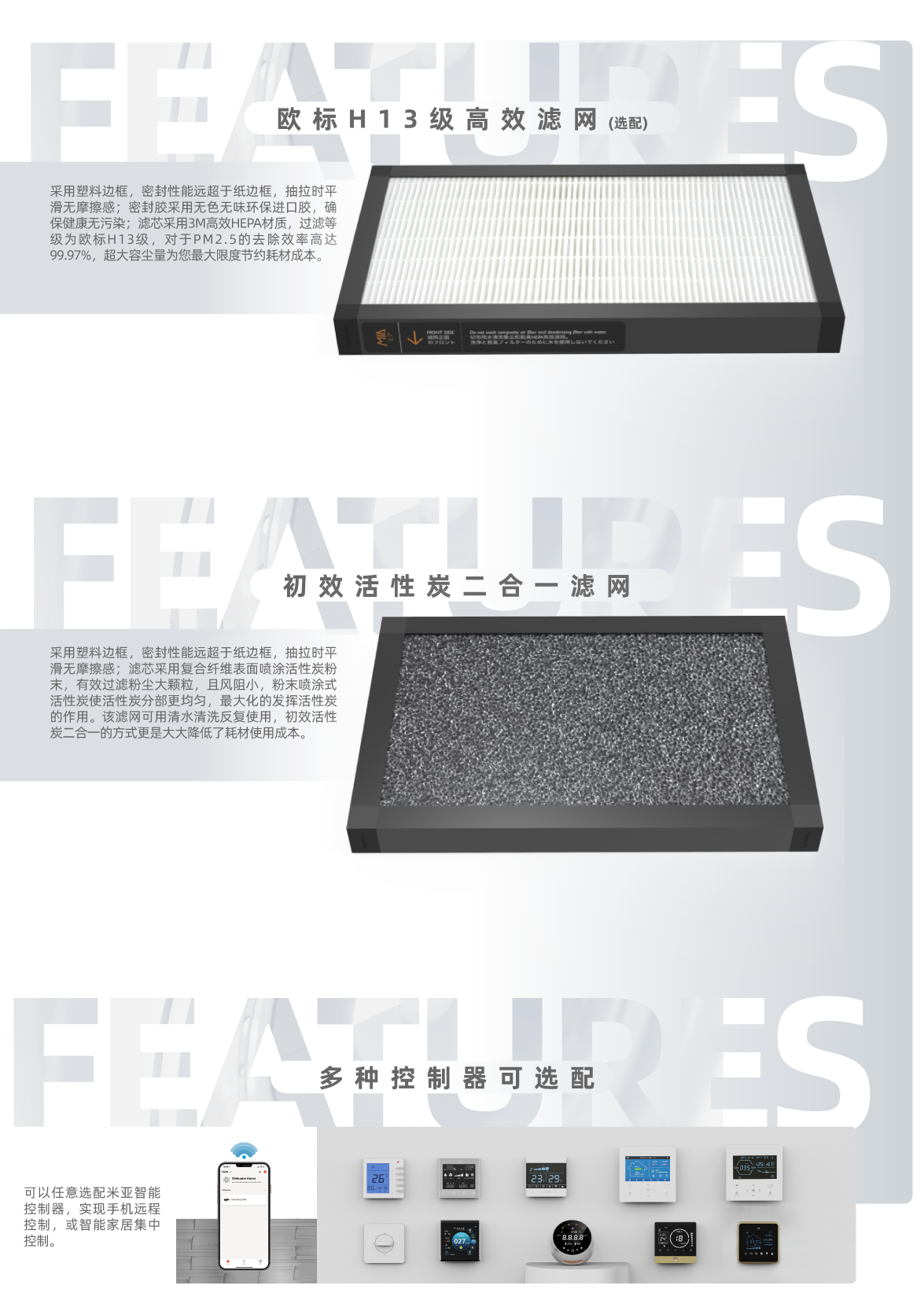

H13 HEPA + Activated Carbon Combo

European H13-grade HEPA filter as secondary barrier — removes 99.95% of PM2.5 particles. Activated carbon combo filter layer eliminates VOCs, formaldehyde, odours, and chemical contaminants from incoming fresh air.

Cross-flow Enthalpy Heat Recovery

Same high-efficiency cross-flow polymer enthalpy core as the standard SXL — simultaneous supply and exhaust, full sensible and latent heat recovery. Multiple controller options: wired, wireless, Wi-Fi smart home integration.

Photo Gallery

Product Showcase

Models

Choose Your Model

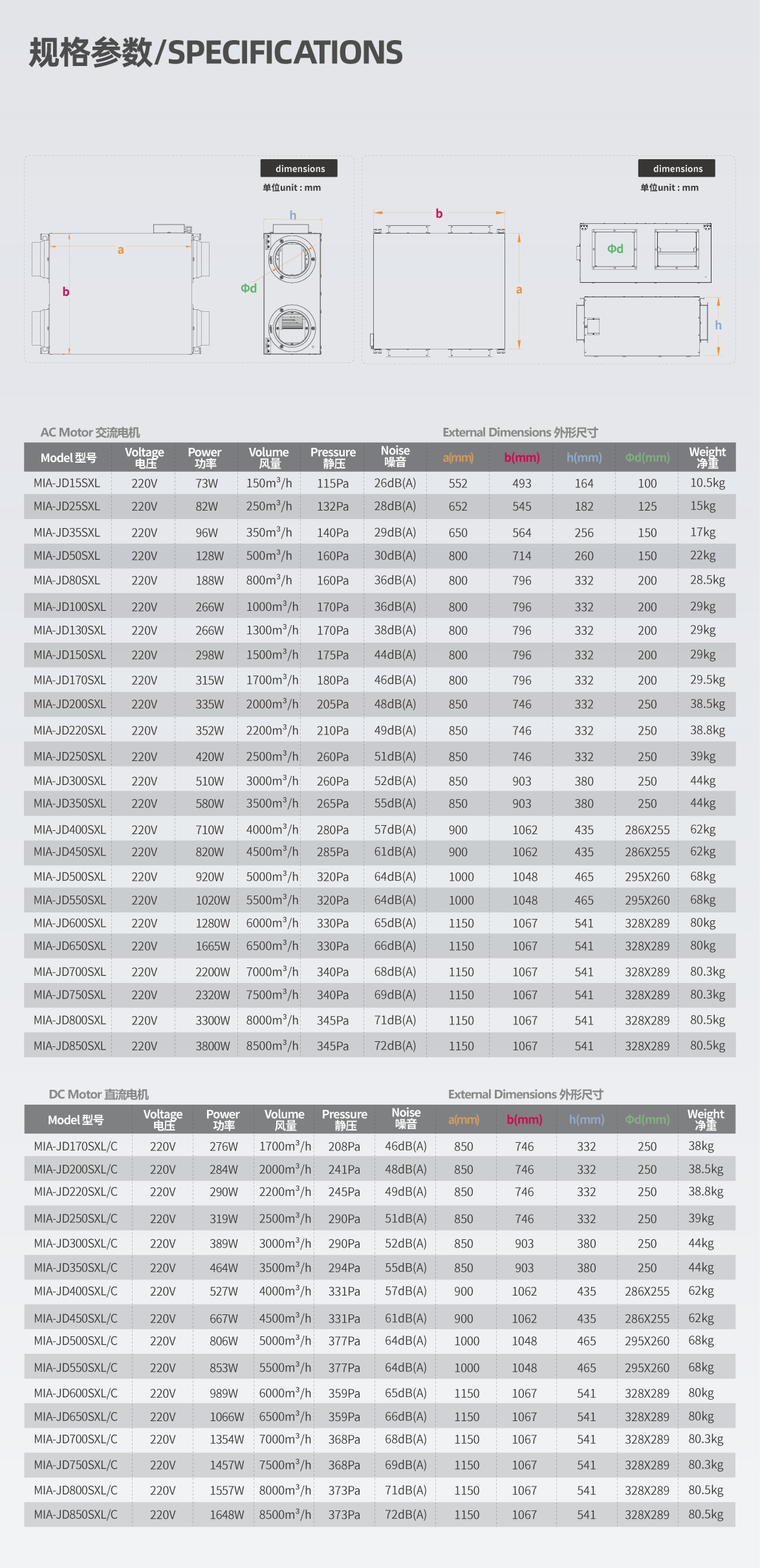

Specifications

Technical Parameters

AC and DC brushless variants. All JD models include the ionic ESP module + H13 HEPA + activated carbon as standard.

Model	Type	Voltage	Power	Flow Rate	Pressure	Noise	Weight
MIA-JD·SXL150	AC	220V	75W	150 m³/h	40Pa	25 dB(A)	13.8 kg
MIA-JD·SXL200	AC	220V	88W	200 m³/h	40Pa	28 dB(A)	15 kg
MIA-JD·SXL300	AC	220V	115W	300 m³/h	45Pa	32 dB(A)	17.5 kg
MIA-JD·SXL400	AC	220V	138W	400 m³/h	51Pa	35 dB(A)	20 kg
MIA-JD·SXL500	AC	220V	173W	500 m³/h	51Pa	36 dB(A)	26 kg
MIA-JD·SXL200JC	DC	220V	27W	200 m³/h	40Pa	26 dB(A)	15 kg
MIA-JD·SXL300JC	DC	220V	38W	300 m³/h	45Pa	28 dB(A)	17.5 kg
MIA-JD·SXL500JC	DC	220V	62W	500 m³/h	51Pa	33 dB(A)	26 kg
MIA-JD·SXL800JC	DC	220V	120W	800 m³/h	55Pa	40 dB(A)	35 kg
MIA-JD·SXL1000JC	DC	220V	150W	1000 m³/h	60Pa	43 dB(A)	42 kg

* JC = DC brushless motor. JD = with ionic ESP electrostatic precipitation module. All models: H13 HEPA + activated carbon included.

SXL Series

Other SXL Models

Interested in this model?

The JD·SXL combines ionic dust removal with cross-flow heat recovery — the highest filtration performance in the MIA bidirectional range. Contact us to specify your unit.

Get a Quote SXL Series Overview
