Pipeless Series · Model 01

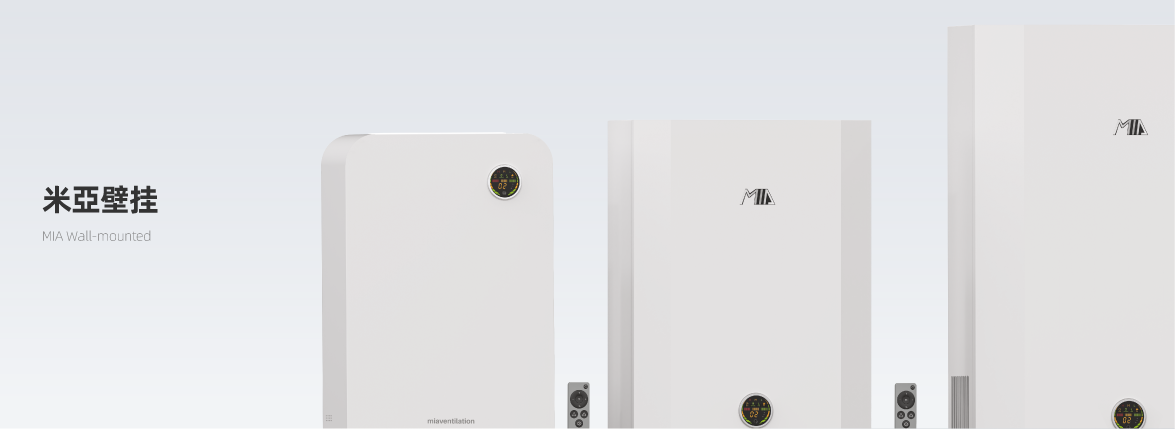

MIA-BG Wall-mounted ERV

米亚壁挂式新风系统 — Slim wall-panel heat recovery ventilator requiring no ductwork. One 150mm core drill, installs in hours. Full heat recovery with ESP, H13 HEPA, and activated carbon filtration options — the ideal retrofit solution.

Key Features

Full Heat Recovery. Zero Ductwork.

The MIA-BG brings heat recovery ventilation to any room in any building — without pipework, without suspended ceilings, without construction.

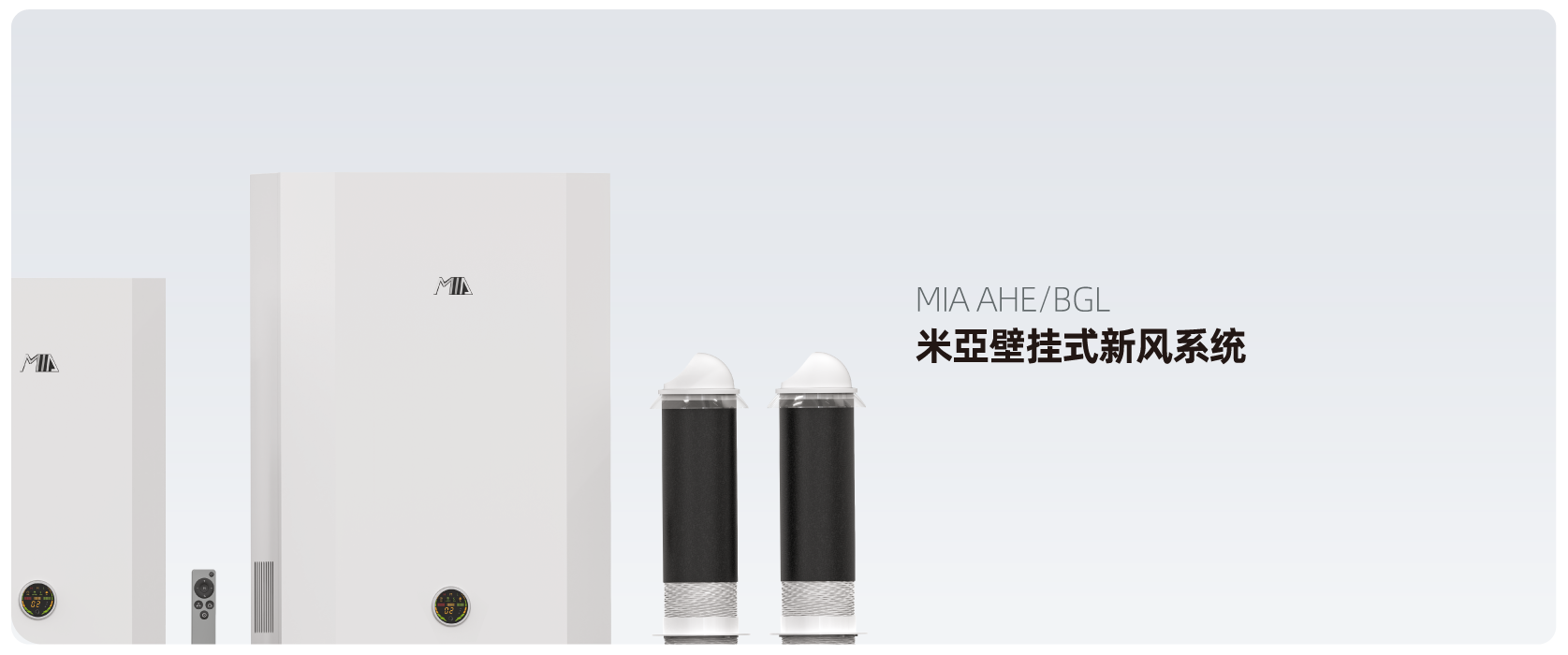

3 Models — Small, Medium, Large

Available in three sizes to suit any room. Slim white panel design blends into any interior. Controller integrated into the front panel or optional remote wall controller.

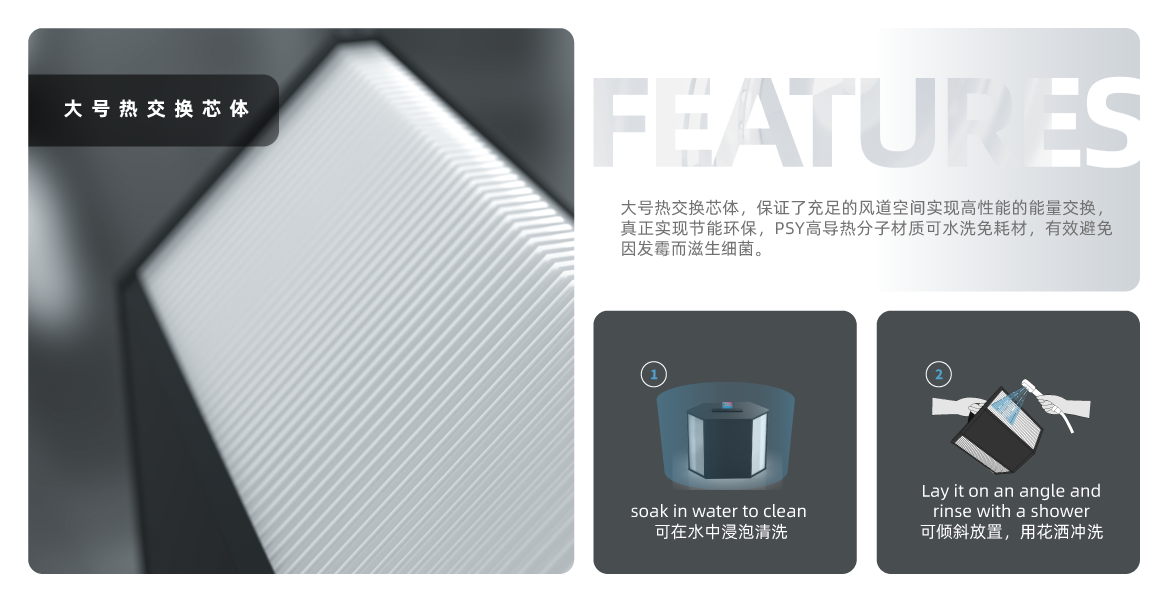

Large-Format Heat Exchanger Core

Oversized PSY polymer heat exchange core delivers ≥85% thermal efficiency — recovering both sensible heat and latent moisture. Washable and reusable — soak in water or rinse with shower.

ESP + H13 HEPA + Carbon Filtration

High-voltage electrostatic precipitator captures ultra-fine PM1.0 particles. H13 HEPA removes 99.95% of PM2.5, bacteria, and viruses. Activated carbon layer eliminates odours, VOCs, and formaldehyde.

Photo Gallery

Product Showcase

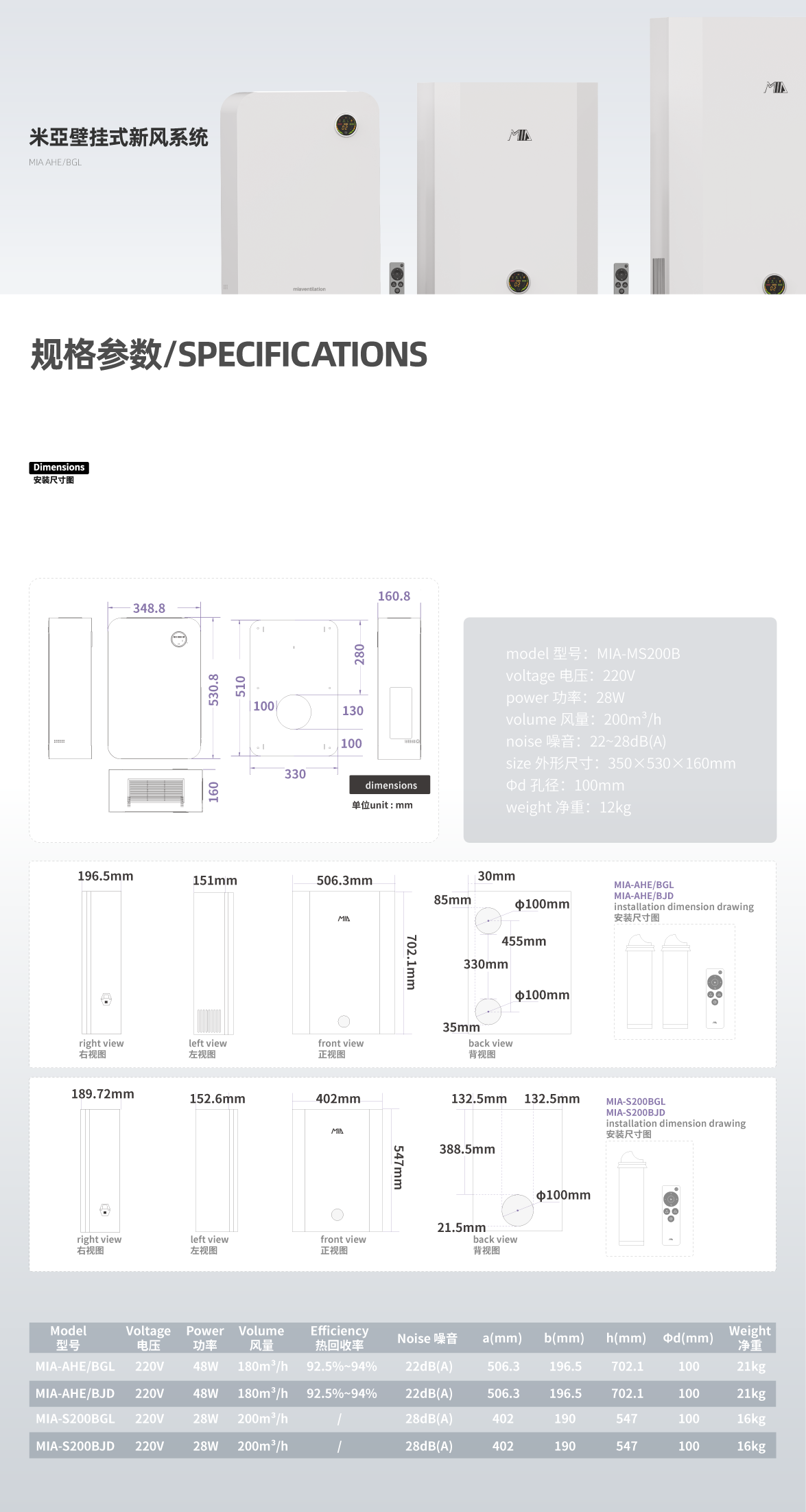

Specifications

Technical Parameters

BGL = Standard · BGLB = with ESP · BGLJDB = with H13 HEPA

Model	Voltage	Power	Flow Rate	Efficiency	Noise	Dimensions (mm)	Weight
MIA-AHE15BGL	220V	40W	150 m³/h	82–90%	24 dB(A)	506.1 × 455 × 85	9.3 kg
MIA-AHE15BGLB (ESP)	220V	40W	150 m³/h	82–90%	24 dB(A)	506.1 × 455 × 85	9.3 kg
MIA-AHE25BGL	220V	57W	200 m³/h	80–88%	28 dB(A)	506.1 × 700 × 85	12 kg
MIA-AHE25BGLB (ESP)	220V	57W	200 m³/h	80–88%	28 dB(A)	506.1 × 700 × 85	12 kg
MIA-AHE30BGL	220V	84W	300 m³/h	80–87%	32 dB(A)	402 × 1003 × 30	15 kg
MIA-AHE30BGLB (ESP)	220V	84W	300 m³/h	80–87%	32 dB(A)	402 × 1003 × 30	15 kg

* Multiple controller options available: wired panel, wireless remote, smart Wi-Fi controller.

Pipeless Series

Other Pipeless Models

Interested in this model?

One core drill, a few hours of installation — and your space has full heat recovery ventilation. Contact us to find the right MIA-BG model.
