Pipeless Series · Model 02

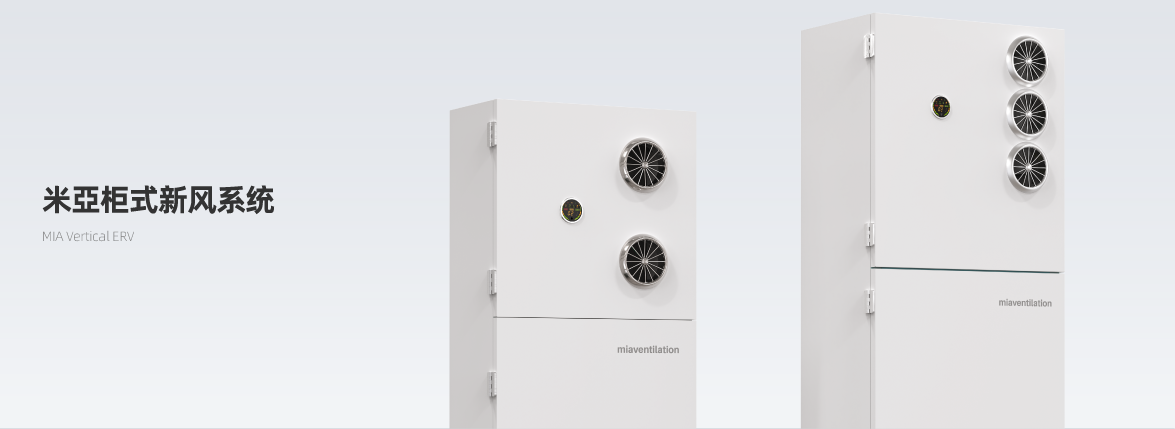

MIA Vertical Cabinet ERV

米亚柜式新风系统 — Large-capacity vertical cabinet ERV with high-performance propeller fans visible on the front panel. No ductwork required — wall-mount and connect to exterior wall ports. Covers large apartments, villas, and light commercial spaces.

Key Features

High Capacity. No Ductwork.

The Vertical Cabinet ERV brings large-volume heat recovery to spaces where ceiling installation is impossible — with a clean, modern white cabinet design.

Two Capacity Options

Single-fan model (400–600 m³/h) for large apartments and small villas. Triple-fan model (600–900 m³/h) for large villas and light commercial spaces requiring higher volume without ductwork.

Full Filtration Suite

High-voltage ESP electrostatic precipitator, H13 HEPA filter, and activated carbon combo filter — the same multi-stage filtration system used in the MIA-BG wall-mounted series, scaled for higher airflow.

220V · 312–332W · High Efficiency

Standard 220V residential power. 88–91.5% heat recovery efficiency at rated airflow. Simple wall installation with Ø150–200mm exterior wall ports — no structural modifications.

Photo Gallery

Product Showcase

Models

Choose Your Vertical Cabinet Model

Select a model to view full specifications, dimensions, and performance curves.

Specifications

Technical Parameters

Model	Voltage	Power	Flow Rate	Efficiency	Noise	Dimensions (mm)	Weight
MIA-AHE600JD	220V	312W	600 m³/h	88.3–91.5%	35 dB(A)	262 × 500 × 405	45.3 kg
MIA-AHE900L	220V	332W	900 m³/h	88.3–91.5%	38 dB(A)	341.6 × 555 × 875	48.3 kg
MIA-AHE90JD	220V	332W	900 m³/h	88.3–91.5%	38 dB(A)	341.6 × 555 × 875	68.1 kg

* JD = with ionization dust removal · L = standard. Ø150 and Ø200mm wall ports depending on model.

Pipeless Series

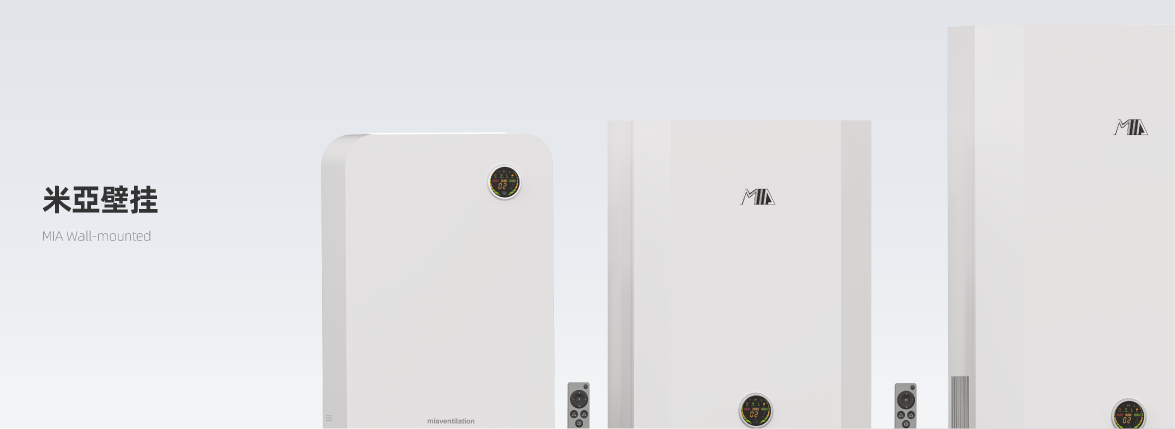

Other Pipeless Models

Interested in this model?

The Vertical Cabinet ERV is the answer — high-volume heat recovery without a single metre of ductwork. Contact us to configure the right model.
