MIA Multi-port Self-balancing Distribution Box

Unidirectional Series · Distribution Box

MIA Multi-port Distribution Box

米亚多孔自平衡负压式新风机 — Self-balancing multi-port fresh air distribution unit. One central unit serves 4–8 rooms simultaneously via independent Ø75 mm outlet ports — no separate fan per room, no complex balancing, automatic equal distribution.

Key Features

One Unit. Multiple Rooms.

The MIA multi-port box eliminates the need for individual fans in each room — a single ceiling-mounted unit with multiple small-diameter outlets covers the whole floor or apartment.

4–8 Independent Outlet Ports

Transparent polycarbonate casing with 4, 6, or 8 Ø75 mm outlet ports on the top face. Each port connects to a small flexible duct running to individual room grilles. Internal baffle design ensures equal pressure at every port without manual balancing.

Self-balancing Negative Pressure Design

Patented internal geometry creates uniform negative pressure at all outlet ports — automatically distributing equal airflow to each room regardless of duct length differences. No manual balancing valves required. Total flow 200–500 m³/h with 220V motor.

Residential to Light Commercial Scale

Suitable for apartments (4-port, 2–3 bedroom), villas (6-port, 4–5 bedroom), and small offices (8-port). Ceiling void installation — compact 303 × 303 mm footprint with low-profile housing. AC 220V standard, DC brushless option for lower noise.

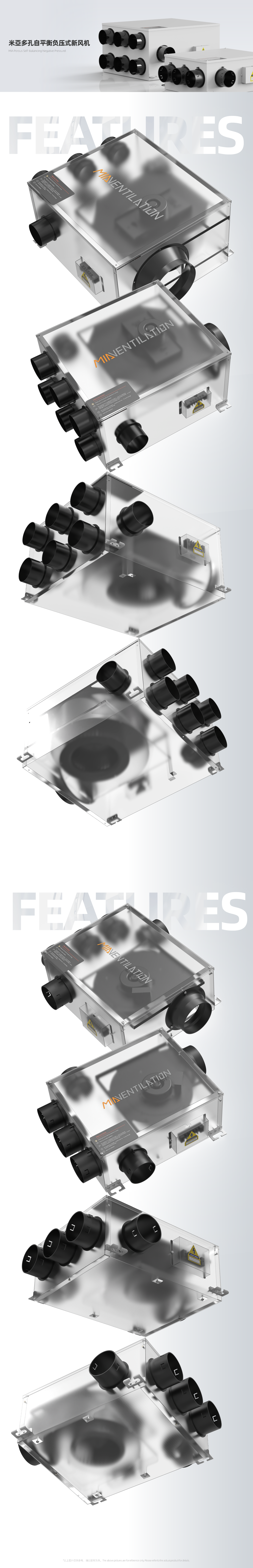

Photo Gallery

Product Showcase

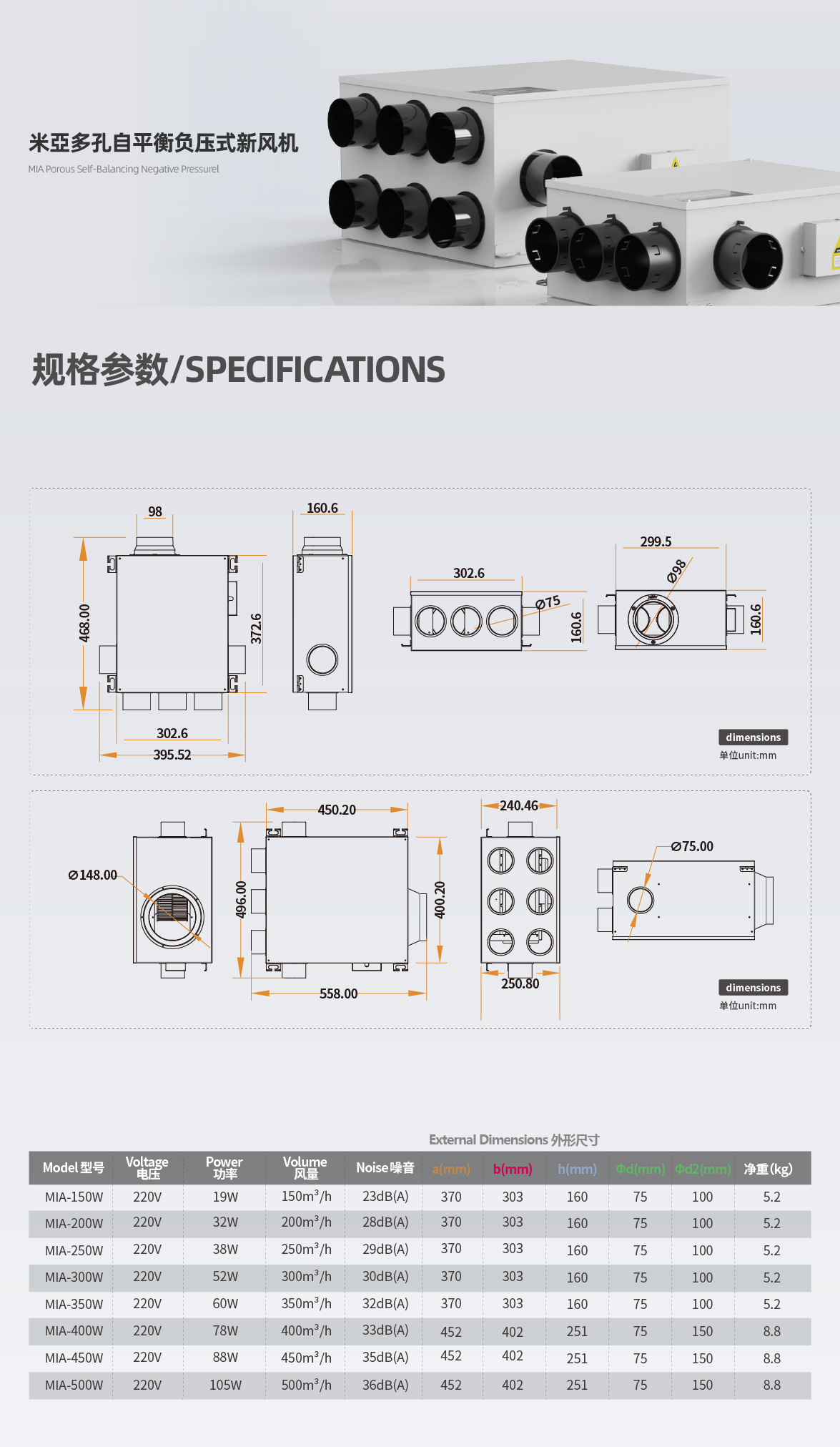

Specifications

Technical Parameters

Model	Voltage	Power	Flow Rate	Ports	Noise	Dimensions (mm)	Weight
MIA-150W	220V	22W	150 m³/h	4 × Ø75	27 dB(A)	370 × 302 × 160	3.2 kg
MIA-200W	220V	32W	200 m³/h	4 × Ø75	28 dB(A)	370 × 302 × 160	3.5 kg
MIA-250W	220V	52W	250 m³/h	6 × Ø75	33 dB(A)	370 × 302 × 160	5.2 kg
MIA-350W	220V	78W	350 m³/h	6 × Ø75	36 dB(A)	452 × 402 × 251	7.5 kg
MIA-400W	220V	105W	400 m³/h	8 × Ø75	38 dB(A)	452 × 402 × 251	8.8 kg
MIA-500W	220V	135W	500 m³/h	8 × Ø75	40 dB(A)	556 × 502 × 251	10 kg

* Ø75 mm flexible duct connections per port. DC brushless motor variants available. Optional G4 pre-filter on main inlet.

Unidirectional Series

Other Unidirectional Models

Interested in this model?

The MIA multi-port box serves every room from a single ceiling installation — self-balancing, no per-room fans, minimal ductwork. Contact us to design the right configuration.
