Unidirectional Series · Multi-filter

MIA Multi-filter Silent Fan

米亚多重过滤静音型送风机 — Premium transparent-casing fresh air supply unit with multi-stage filtration. ESP electrostatic precipitation + H13 HEPA + activated carbon — the highest air purification in a single-flow ventilation unit. Compact ceiling-void installation.

Key Features

Three-stage Filtration in One Unit.

The MIA MF series packages a complete air purification system into a compact ceiling-mount unit — suitable for single rooms, small offices, and medical environments.

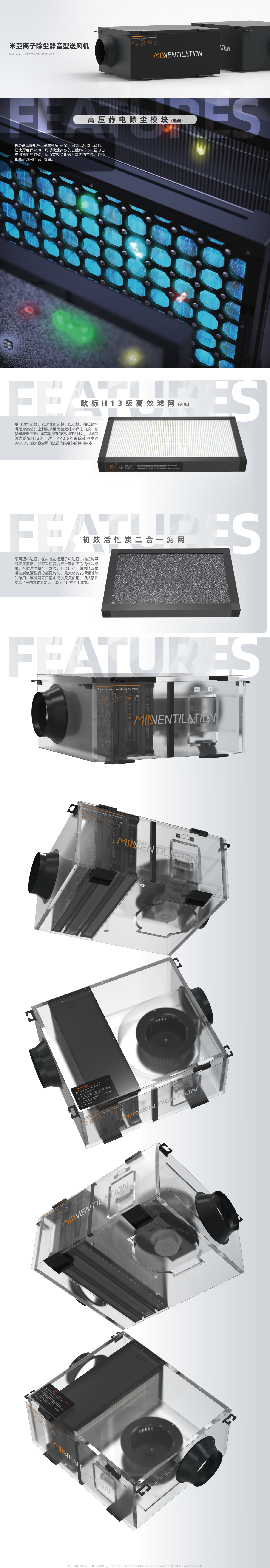

ESP + H13 HEPA + Activated Carbon

High-voltage electrostatic precipitation module as first stage captures ultra-fine particles. European H13 HEPA filter as second stage removes 99.95% of PM2.5. Activated carbon combo filter as third stage eliminates VOCs, formaldehyde, and odours.

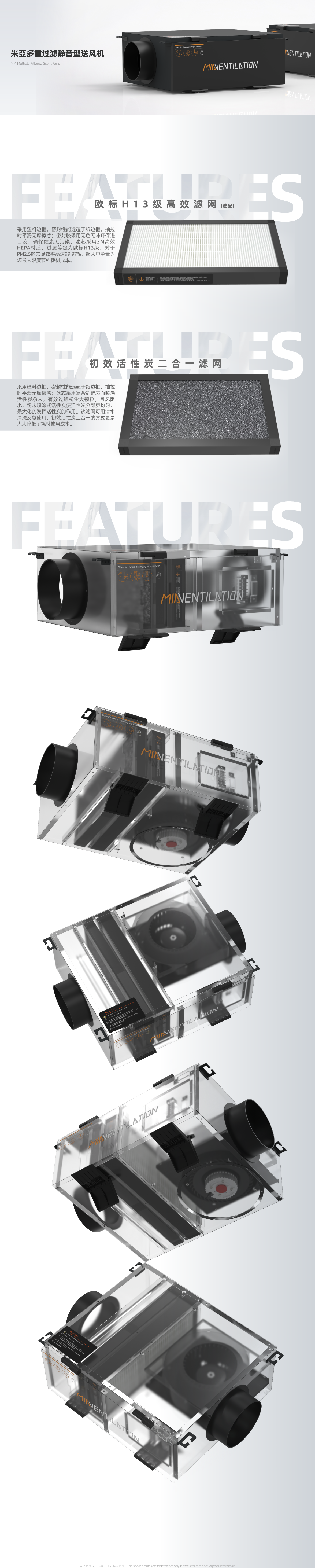

Transparent PC Casing — Visual Filter Status

Clear polycarbonate casing allows visual inspection of filter condition without removing covers. All filter stages are accessible from the bottom without tools. Ceiling void installation — compact profile fits above suspended ceilings.

AC and DC Brushless Variants

Available in AC 3-speed (220V) and DC brushless variants for minimum noise and maximum energy efficiency. DC variant adds intelligent speed control via 0–10V signal for BMS integration. Multiple controller options including smart Wi-Fi.

Photo Gallery

Product Showcase

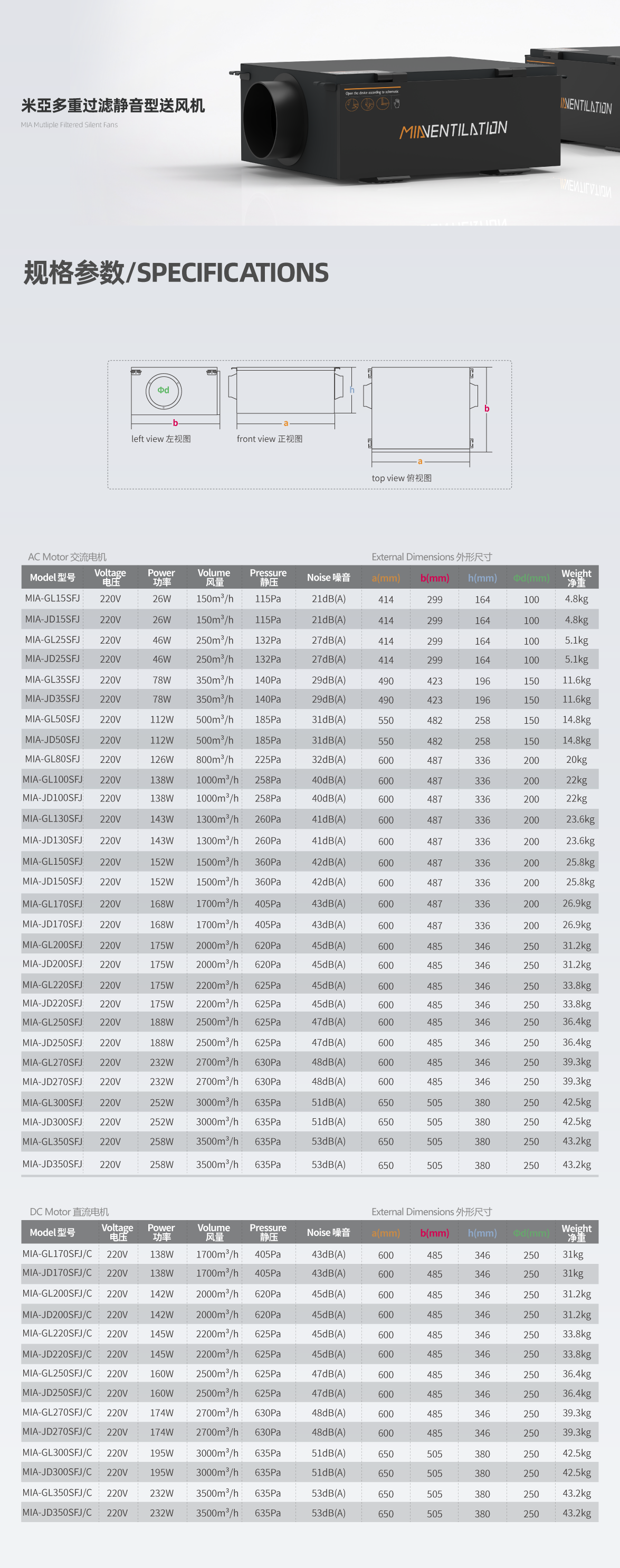

Specifications

Technical Parameters

MF-GL (standard) and MF-JD (with ionic ESP) variants. AC and DC brushless options for all sizes.

Model	Type	Voltage	Power	Flow Rate	Pressure	Noise	Filtration
MIA-GL150FJ	AC	220V	75W	150 m³/h	35Pa	30 dB(A)	H13 HEPA + Carbon
MIA-GL200FJ	AC	220V	88W	200 m³/h	35Pa	32 dB(A)	H13 HEPA + Carbon
MIA-GL300FJ	AC	220V	112W	300 m³/h	45Pa	36 dB(A)	H13 HEPA + Carbon
MIA-GL500FJ	AC	220V	173W	500 m³/h	51Pa	40 dB(A)	H13 HEPA + Carbon
MIA-JD150FJ	AC	220V	75W	150 m³/h	35Pa	30 dB(A)	ESP + H13 + Carbon
MIA-JD200FJ	AC	220V	88W	200 m³/h	35Pa	32 dB(A)	ESP + H13 + Carbon
MIA-JD300FJ	AC	220V	112W	300 m³/h	45Pa	36 dB(A)	ESP + H13 + Carbon
MIA-GL150FJ/C	DC	220V	27W	150 m³/h	35Pa	26 dB(A)	H13 HEPA + Carbon
MIA-GL300FJ/C	DC	220V	38W	300 m³/h	45Pa	30 dB(A)	H13 HEPA + Carbon
MIA-JD300FJ/C	DC	220V	38W	300 m³/h	45Pa	30 dB(A)	ESP + H13 + Carbon

* GL = H13 HEPA + Carbon · JD = ESP + H13 HEPA + Carbon · /C = DC brushless motor variant.

Unidirectional Series

Other Unidirectional Models

Interested in this model?

The MIA MF series delivers fresh, triple-filtered air to any room — ESP, H13 HEPA, and activated carbon in one compact ceiling unit. Contact us to specify the right model.
