XFHR Series · Model 02

XFHR Vertical Cabinet ERV + Dehumidifier

立柜式热回收新风除湿一体机 · 全自动排水款 — Floor-standing vertical cabinet combining cross-flow heat recovery ventilation with active refrigerant dehumidification. Same dual-mode operation as the ceiling unit — in a freestanding cabinet format for spaces without accessible ceiling voids.

Key Features

Same Power. Freestanding Format.

The XFHR Vertical Cabinet delivers identical performance to the ceiling unit — in a floor-standing white cabinet format that needs no ceiling space and can be placed in a utility room or corridor.

Floor-standing White Cabinet — No Ceiling Required

Vertical freestanding cabinet format — ideal for buildings where ceiling void installation is not possible. Place in a utility room, corridor, or dedicated plant space. Duct connections on top for supply and exhaust. Compact 750 × 596 × 880 mm footprint.

Dual Mode: Heat Recovery + Fast Dehumidification

Heat recovery fresh air mode: cross-flow enthalpy exchanger recovers 68–73% of thermal energy while supplying filtered fresh air. Fast dehumidification mode: refrigerant evaporator removes moisture from circulating indoor air for rapid humidity reduction during wet season.

Auto Drain + Multiple Controller Options

Built-in fully automatic condensate drain pump — no gravity slope needed. Multiple smart controller options: wired panel, wireless remote, Wi-Fi app. Auto humidity mode maintains target humidity automatically, switching between ERV mode and dehumidification mode as needed.

Photo Gallery

Product Showcase

Models

Choose Your Model

Vertical Cabinet · H13

MIA-500VFAHMC

500 m³/h

View Details →

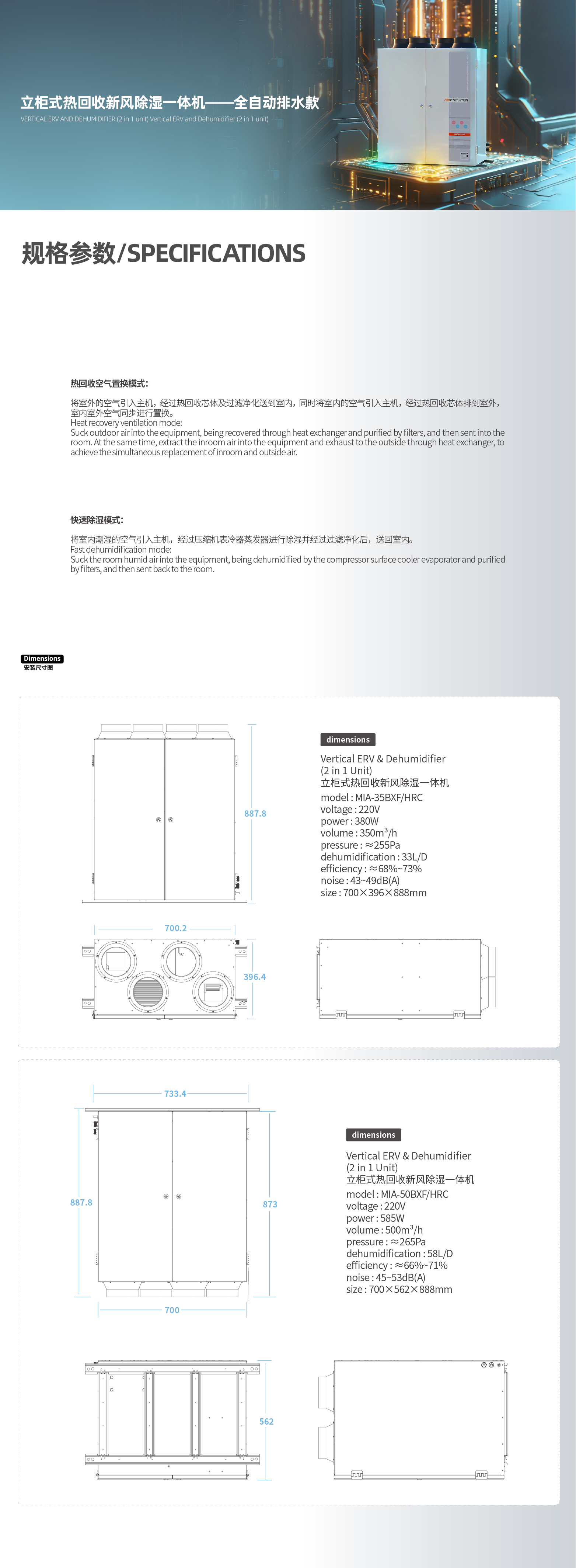

Specifications

Technical Parameters

Vertical floor-standing ERV + dehumidifier. 220V, auto drain pump included as standard.

Model	Voltage	Power	Flow Rate	Dehumidification	HR Efficiency	Noise	Dimensions (mm)	Weight
MIA-500VFAHMC (S)	220V	300W	350 m³/h	50 L/day	68–73%	43–49 dB(A)	750 × 596 × 880	45 kg
MIA-500VFAHMC (L)	220V	380W	500 m³/h	50 L/day	68–73%	45–53 dB(A)	794 × 562 × 880	55 kg

* Dehumidification capacity at 30°C / 80% RH. Static pressure ~225 Pa. Duct connection Ø150 mm. Built-in auto drain pump included.

XFHR Series

Other XFHR Models

Interested in this model?

The XFHR Vertical Cabinet delivers the same ERV + dehumidification performance in a freestanding format — no ceiling void needed. Contact us to configure the right model.
