XFHR Series · Model 01

XFHR Ceiling ERV + Dehumidifier

热回收新风除湿一体机 · 升级全自动排水款 — Ceiling-mount unit combining cross-flow heat recovery ventilation with active refrigerant dehumidification. Two operating modes: heat recovery fresh air mode and fast dehumidification mode. Built-in fully automatic drain pump. Designed for humid-climate tropical and subtropical buildings.

Key Features

Heat Recovery + Dehumidification. One Unit.

The XFHR ceiling unit operates in two modes: heat recovery fresh air mode for year-round ventilation, and fast dehumidification mode for rapid humidity removal in wet seasons.

Dual Operating Modes

Heat recovery mode: fresh outdoor air enters, passes through heat exchanger, is filtered, and supplied to the room. Simultaneously, stale indoor air is exhausted. Fast dehumidification mode: indoor air circulates through the refrigerant evaporator, moisture is extracted, and dry air is returned to the room.

Built-in Fully Automatic Drain Pump

Upgraded auto-drain version — fully automatic condensate pump discharges collected water via small-diameter drain tube to any accessible drain point. No gravity slope required, no manual emptying. Pump activates automatically when water reaches sensor level.

Ceiling Void Installation · 220V

Compact flat profile mounts above suspended ceiling. Standard Ø150 mm round duct connections for fresh air intake and exhaust ports. 220V residential power. Two models available: standard (250–350 m³/h) and large (500 m³/h).

Photo Gallery

Product Showcase

Models

Choose Your Model

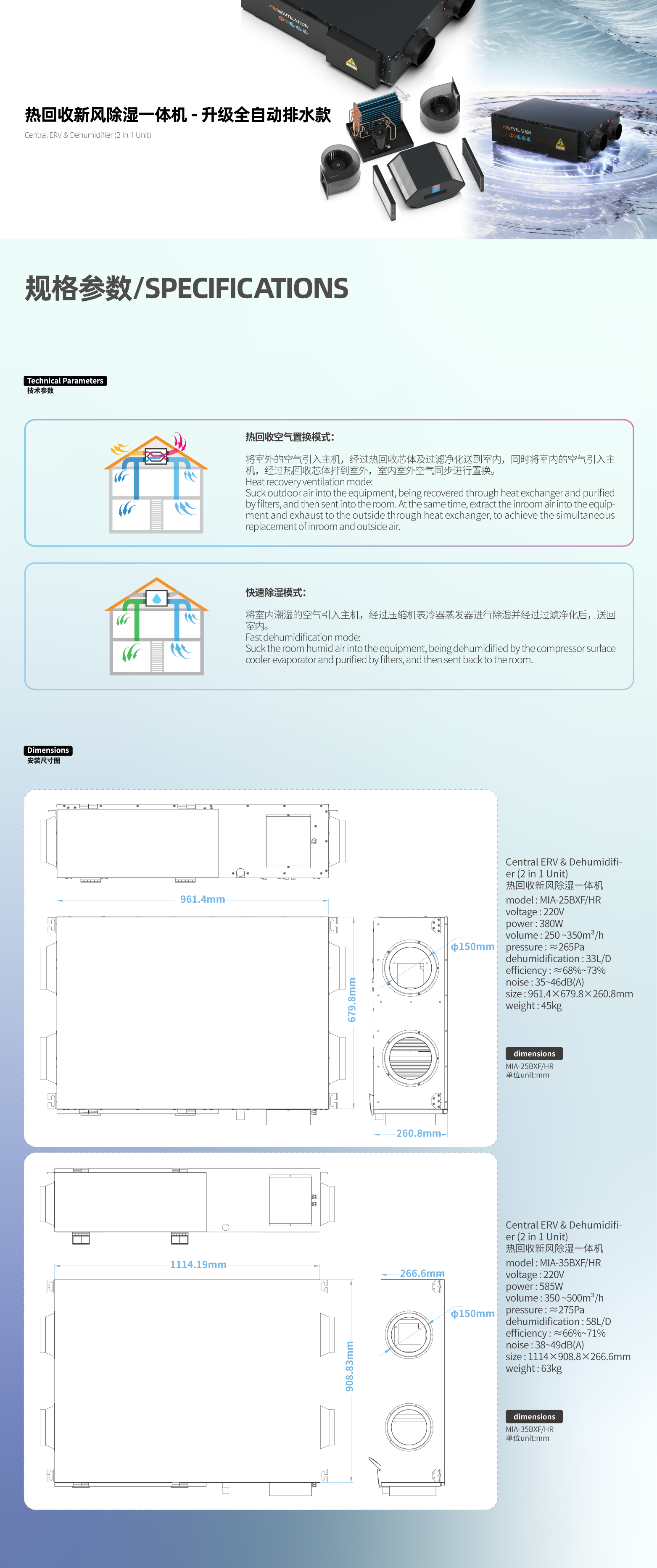

Specifications

Technical Parameters

Ceiling-mount ERV + dehumidifier with built-in auto drain pump. 220V residential power supply.

Model	Voltage	Power	Flow Rate	Dehumidification	HR Efficiency	Noise	Dimensions (mm)	Weight
MIA-200VFAHC	220V	380W	250–350 m³/h	30 L/day	68–73%	35–46 dB(A)	963 × 674 × 261	45 kg
MIA-500VFAHC	220V	580W	350–500 m³/h	50 L/day	68–73%	43–49 dB(A)	1114 × 969 × 207	65 kg

* Dehumidification capacity at 30°C / 80% RH. Pressure ~225 Pa. Duct connection Ø150 mm. Built-in auto drain pump included.

XFHR Series

Other XFHR Models

Interested in this model?

The XFHR ceiling unit handles both fresh air and humidity in one installation — ideal for humid tropical and subtropical climates. Contact us to specify the right model.
